Question

HELPPP PLS TYSM IF U HELPED <3

Answer 1

The measure of <TRS and angle d are 70 and 43degrees respectively

Triangles and angle

The given triangles are isosceles triangles since they have two equal sides.

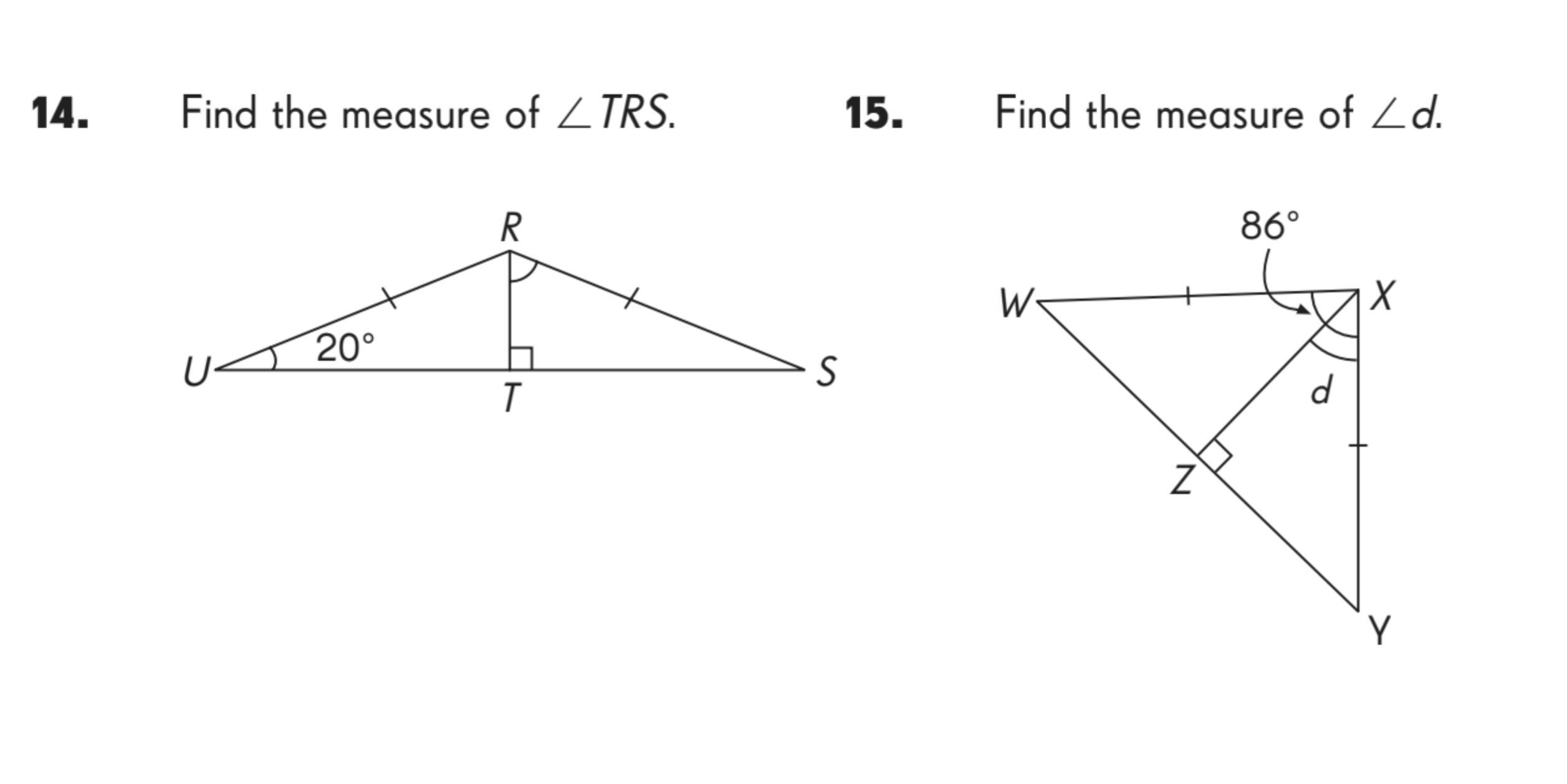

14) From he triangle RST

<TRS + 90 + 20 = 180

<TRS + 110. = 180

Subtract 110 from both sides

<TRS = 180 -110

<TRS = 70 degrees

15) For this triangle;

d = 86/2

d = 43 degrees

Hence the measure of <TRS and angle d are 70 and 43degrees respectively

Learn more on angles here: brainly.com/question/25770607
