Question

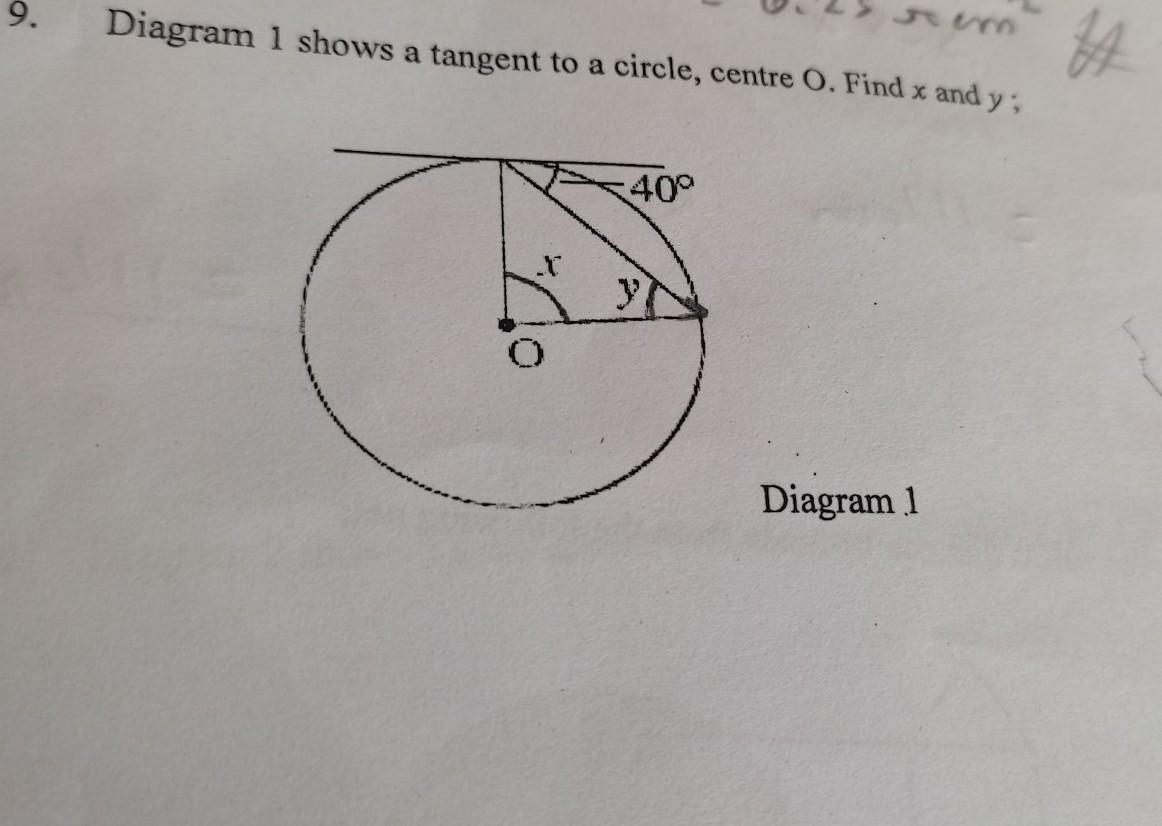

Diagram 1 shows a tangent to a circle, centre O. Find x and y; 40° y Diagram 1​

Answer 1

Answer:

x = 80°

y = 50°

Step-by-step explanation:

the legs of the inner triangle (tangent to O, and O to point with y angle) are equal because both are the radius of the circle.

that makes the inner triangle an isoceles triangle with both angles on the baseline (tangent to point with y angle) being equal.

the angle of the tangent to the leg "tangent to O" is per definition a right angle (90°). otherwise it would not be a tangent.

one post of the right angle is 40°, so the other part (the triangle inner angle at the tangent point) is then 90-40 = 50°.

since both leg angles must be equal (as described above), y = 50° too.

and as the sum of all angles in a triangle must be 180°, that gives us for x

180 = 50 + 50 + x

x = 180 - 50 - 50 = 80°

Answer 2

Answer:

x = 80 , y = 50

Step-by-step explanation:

the angle between the tangent and the radius at the point of contact is 90°

given the angle between the tangent and the chord is 40° , then

angle inside triangle = 90° - 40° = 50°

the triangle has 2 equal radii forming 2 sides thus is isosceles with 2 base angles being congruent, then

y = 50°

the sum of the 3 angles in the triangle = 180° , then

x = 180° - 50° - 50° = 180° - 100° = 80°
