In a pharmaceutical plant, a copper pipe (kc = 400 W/mK) with inner diameter of 20 mm and wall thickness of 2.5 mm is used for c

arrying liquid oxygen to a storage tank. The liquid oxygen flowing in the pipe has an average temperature of -200 deg C and a convention heat transfer coefficient of 120 W/m^2 K.
If the dew point is 10 deg C, determine the thickness of the insulation (ki = 0.05 W/m K) around the copper pipe to avoid condensation on the outer surface. Assume thermal contact resistance is negligible.

Engineering
1 answer:
GaryK [48]4 years ago
8 0

Answer:

See explaination

Explanation:

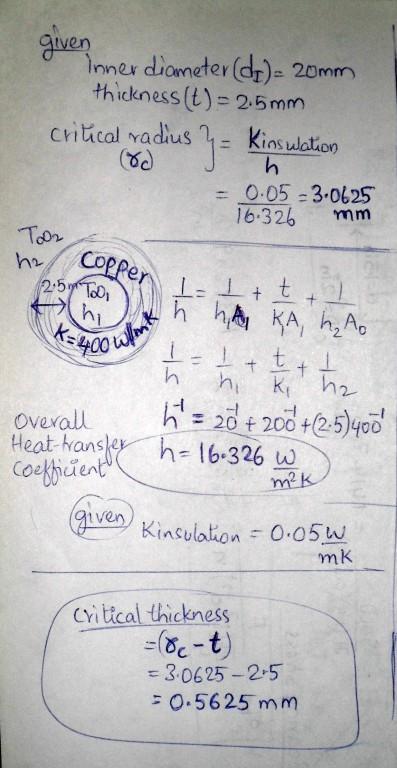

Please kindly check attachment for the step by step solution of the given problem.
