Draw a circle with center A and a radius of your choice. Create three well-spaced points, B, C, and D, on the circle in clockwis
e alphabetical order. Draw two radii, AB and AC , and draw two chords, DB and DC . Measure and record m∠CAB and m∠CDB. Take a screenshot of your diagram with the measurements, and paste it below.
1 answer:
Answer:

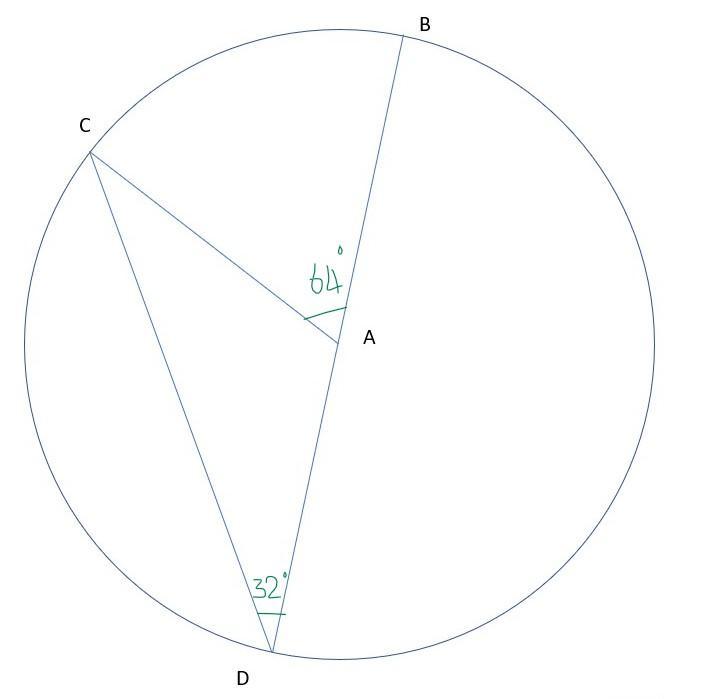

Please find attached the required circle
It is observed that the angle subtended by the arc CB which are m∠CAB and m∠CDB is such that the angle arc CB subtends at the center, m∠CAB is two times the angle that the arc CB subtends at the circumference
The measured angle subtended by the arc CB at the center m∠CAB = 64° and the measured angle subtended by the arc CB at the circumference m∠CDB = 32°
Step-by-step explanation:
T
