Question

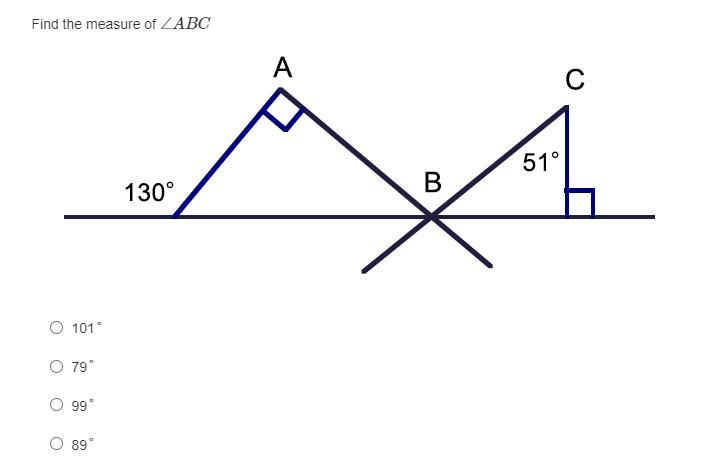

Help please! the question is in the picture below for reference when answering! thank you so much!

Answer 1

Answer:

101°

Step-by-step explanation:

In the rightmost triangle the missing angle is:

180° - 51° - 90° = 39° .     90° comes from the other angle in the straight horizontal line, because there is a 90° on the other side

In the leftmost triangle, the missing angle is:

180° - 90° - 50° = 40° .         50° comes from 180° - 130°

In the straight line

ABC = 180° - 40° - 39° = 101°

Answer = 101°

If my answer is incorrect, pls correct me!

If you like my answer and explanation, mark me as brainliest!

-Chetan K
