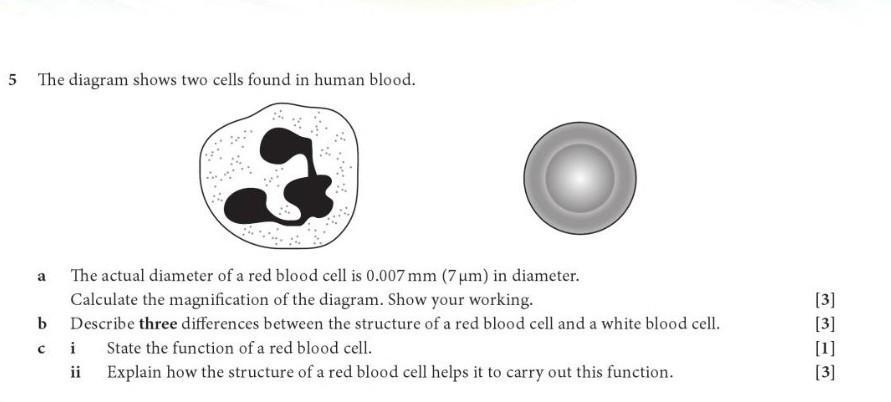

a)
Actual diameter = 0.007 mm
Diameter of scaled diagram = 2.3 cm = 23 mm
Formula to use:
Magnification = scaled dimension/actual dimension
Magnification = 23/0.007
Magnification = 3285.714... → x3286
b)
Red blood cells (RBCs), otherwise known as erythrocytes, don't have nuclei and organelles such as mitochondria, are smaller than WBCs and have a biconcave disc shape ideal for purpose
c)
i.
RBCs transport oxygen inhaled into the lungs around the body to all tissues and organs
ii.
RBCs are void of organelles so they are maximally packed with haemoglobin to bind and transport oxygen;
The biconcave disc shape is ideal for flowing through the blood vessels, particularly the capillaries, optimising them for transporting oxygen;
The small size also helps in being able to circulate the vasculature effectively and successfully
