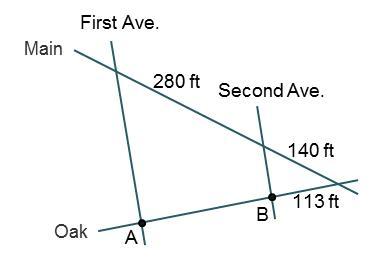

The diagram shows the intersections of several straight roads. The avenues run parallel to each other.
1 answer:
By applying the property of similar triangles, the distance Amana from point A to B walked is: B. 226 ft.
<h3>How to determine the distance?</h3>By critically observing the diagram (see attachment), we can deduce that two (2) similar triangles were formed by the First Ave. and Second Ave.
By applying the property of similar triangles, the distance Amana walked is given by:
(AB + 113)/113 = (280 + 140)/140
(AB + 113)/113 = 420/140
(AB + 113)/113 = 3
AB + 113 = 3 × 113
AB + 113 = 339
AB = 339 - 113
AB = 226 ft.
Read more on similar triangles here: brainly.com/question/1518795
#SPJ1
