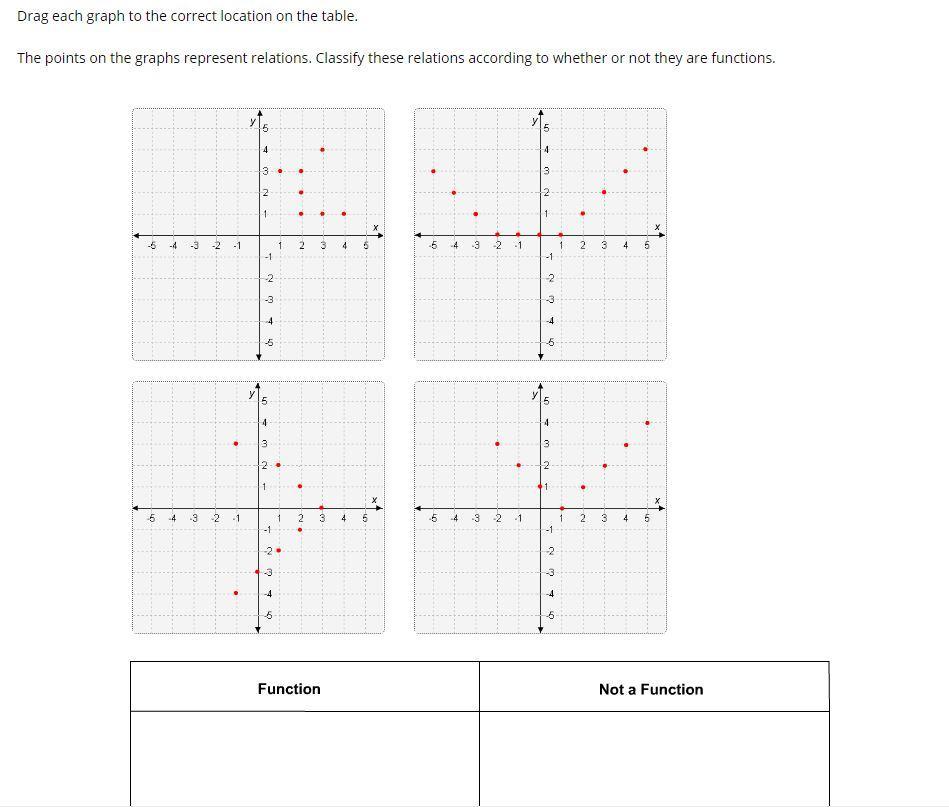

Drag each graph to the correct location on the table.
2 answers:
Answer:
- See the graph attached.
Explanation:
The <em>relations</em> of the two <em>graphs</em> on the left are not functions; the relations of the two graphs of the right are functions.
A <em>relation </em>is a <em>function</em> if and only if any input in the domain (x-value) has only one output (y-value).
On the upper left graph, x = 2 has three different images, and x = 3 has two different images. Thus this is not a function.
On the lower left graph, x = 2 has two different images, such as x = 1 and x = -1. Thus this is<em> not a function</em>.
The two graphs on the right are <em>functions </em>because none x-value has two different images.
You might be interested in
Answer:
The extremes are 5 and 64.
The middle terms are 80 and 4.
Step-by-step explanation:
Given the proportion:
5 : 80 :: 4 :64
To find:
The extreme and middle terms of the given proportion.
Solution:
The given statement is in proportion if and only if the product of extremes i.e. the numbers at both the ends is equal to the product of middle numbers.
OR
First number Fourth number = Second number
Third number
First of all, let us check the two products.
5 64 = 320
And the second product:
80 4 = 320
The product is same therefore, the given numbers are in proportion.
The extreme terms are the first and the fourth numbers.
i.e. The extremes are 5 and 64.
The middle terms are 80 and 4.
Answers:
(a) Possible values of X are: 0, 1, 2, 3, 4, 5
(b) See attached image below; specifically figure 2
(c) No, it is <u>not</u> symmetric
(d) As a fraction, the answer is 1/6. In decimal form, the answer is approximately 0.1667 (converts to roughly 16.67%)
=========================================
Explanations:
(a) The largest possible roll we can get on one die is 6, the smallest is 1, so the largest possible difference is 6-1 = 5. The smallest difference is 0 as we could get doubles (eg: both dice show a "3" at the same time). We can get any difference in between 0 and 5. So X can take on whole numbers from 0 to 5, ie, X can be any number from the set {0, 1, 2, 3, 4, 5}
(b) Consult the attached image. Figure 1 shows a 6 by 6 grid of values that represent all the possible ways to roll two dice. Each value in the interior of the grid is the result of subtracting the outer header values. Figure 2 is where the answer is shown for part b. The idea is that you list out the X values along the top of the table and the probability P(X) values along the bottom row. I show the work on how to compute each probability in the attachment. The probability is equal to the number of occurences over the number total. Example: X = 3 shows up 6 times out of 36, so P(X) is 6/36 = 1/6 when X = 3.
(c) The distribution is not symmetric as figure 3 shows a lop-sided diagram. The mode should be at the center, but this figure shows the mode off to the left side.
(d) Count how many copies of '4' or '5' show up in the interior of the grid shown in figure 1. There are four copies of '4' and two copies of '5'. Overall there are 4+2 = 6 instances of either '4' or '5'. This is out of 36 total, so 6/36 = 1/6 is the fractional form of the answer which approximates to 0.1667 and converts to 16.67% approximately.
