This data set is ages at first job. 14, 14, 16, 16, 17, 17, 18, 20, 21, 23 Construct a boxplot. Make sure to include labels.
1 answer:
Answer:

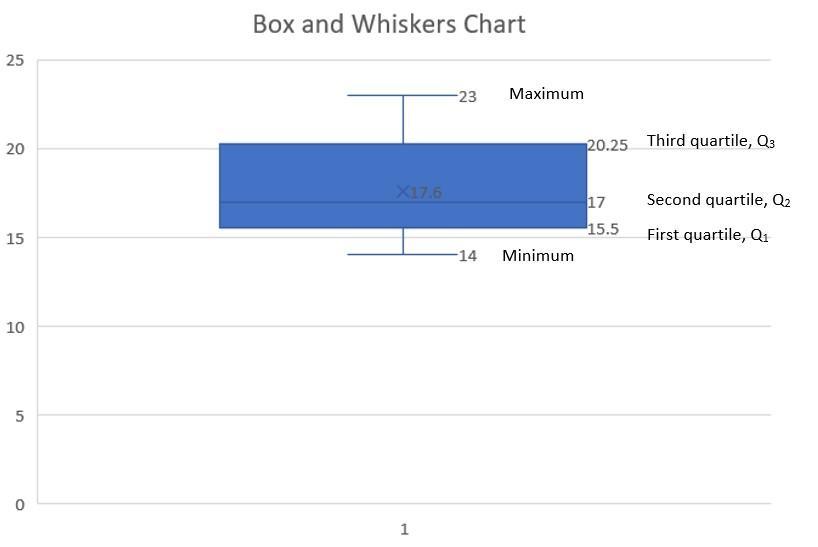

Please find attached the required box and whiskers plot
Step-by-step explanation:
The numbers are given in arranged order as follows;
14, 14, 16, 16, 17, 17, 18, 20, 21, 23
The five number summary are;
The minimum value = 14
The maximum value = 23
The first quartile, Q₁, is the (n + 1)/4th term or the 2.75th term = 14 + 0.75×(16 - 14) = 15.5
The second quartile, Q₂, (the median) is the (n + 1)/2th term or the 5.5th term = 17
The third quartile, Q₃, is the 3(n + 1)/4th term or the 8.25th term = 20 + 0.25×(21 - 20) = 20.25.
