Question

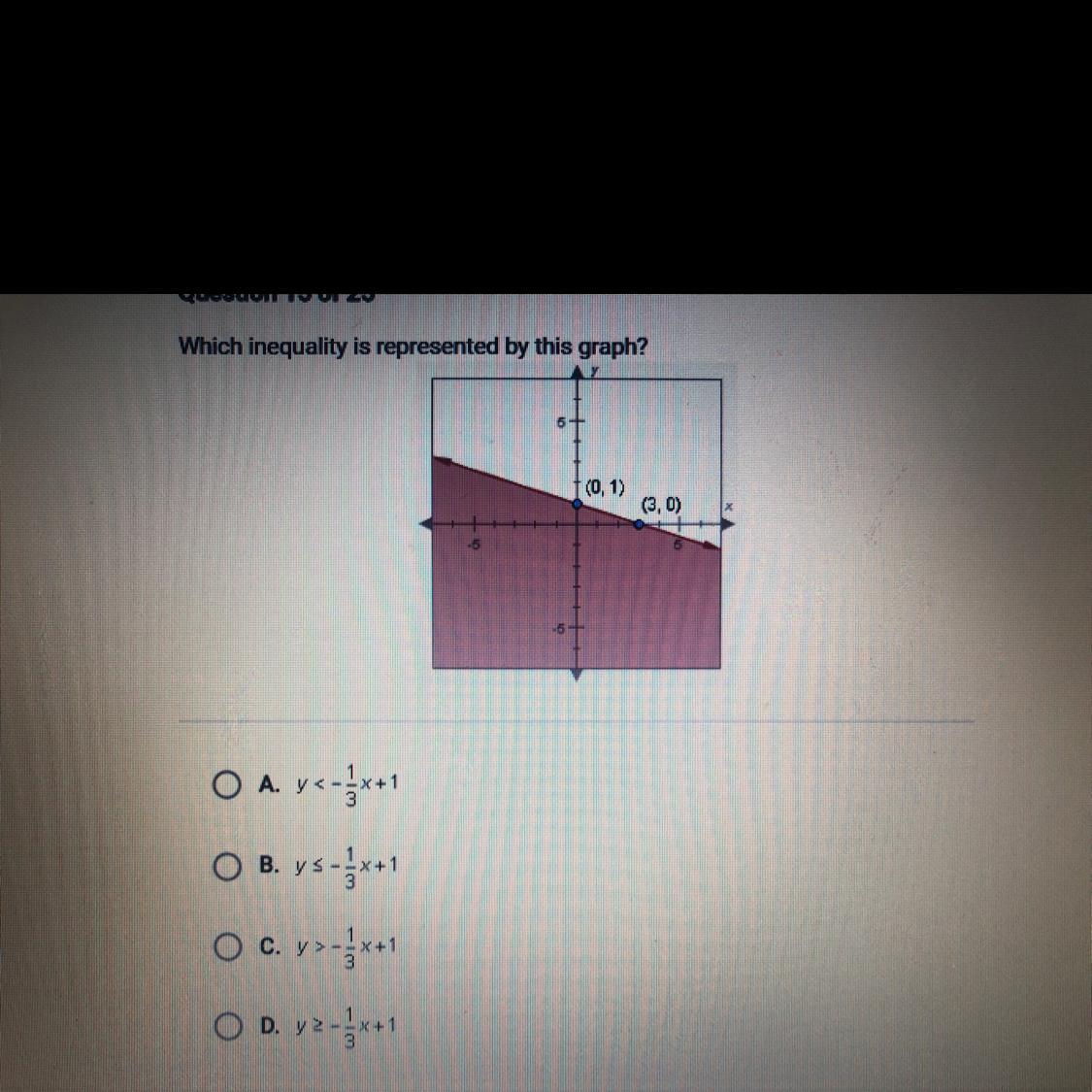

Which inequality is represented by this graph?

Answer 1

Answer: Choice B.  $y \le -\frac{1}{3}x+1$

=====================================================

Explanation:

We need to know the equation of the boundary line. This boundary goes through (0,1) and (3,0). Find the slope of the line through these points

m = (y2-y1)/(x2-x1)

m = (0-1)/(3-0)

m = -1/3, negative slope means the line goes downhill as we move from left to right.

The y intercept is b = 1 as this is where the boundary crosses through the y axis

y = mx+b turns into y = (-1/3)x+1 after replacing m and b with m = -1/3 and b = 1 respectively.

The equation of the boundary line is y = (-1/3)x+1

-------------

The shading is below the boundary, so we'll have a "less than" sign involved here. More specifically, we'll have a "less than or equal to" sign because the boundary is a solid line rather than a dashed one. A solid line tells us "points on the boundary are part of the solution set". The inclusion is because of the "or equal to" portion.

Change the equal sign to a less than or equal to sign to get the final answer of $y \le -\frac{1}{3}x+1$ which is choice B.
