A flatbed truck is supported by its four drive wheels, and is moving with an acceleration of 6.9 m/s2. For what value of the coe

fficient of static friction between the truck bed and a cabinet will the cabinet slip along the bed surface

2 answers:

Luda [366]3 years ago

8 0

Answer:

The cabinet will slip along the bed surface for the values of coefficient of static friction lesser than 0.7

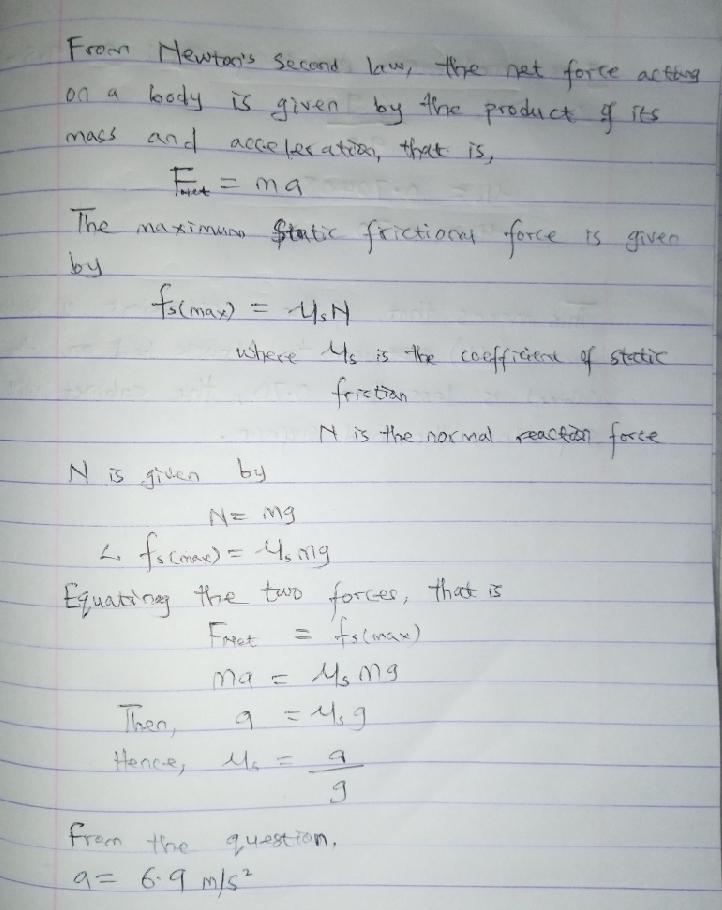

Explanation: Please see the attachments below

MaRussiya [10]3 years ago

3 0

Answer:

The coefficient of static friction is $\mu= 0.7667$

Explanation:

From the question we are told that

The acceleration is $a = 6.9 m/s^2$

The mathematical expression that show the relationship between frictional force and the sliding force of the cabinet at the point just before sliding begins is

$F_f = F_s$

Now $F_f = mg\mu$

Where m is the mass of the cabinet

g is the acceleration due to gravity

$\mu$ is the coefficient of static friction

And $F_s = ma$

Where a is the acceleration due to gravity

Now substituting this into the equation

$mg \mu = ma$

$g\mu =a$

$\mu = \frac{a}{g}$

Substituting values where $g =9.8m/s^2$

$\mu = \frac{6.9}{9.8}$

$\mu= 0.7667$
