MA_775_DIABLO [31]
3 years ago
14

Construct : 4 input NOR Gate Truth Table.

Computers and Technology
1 answer:
Montano1993 [528]3 years ago
6 0

9514 1404 393

Answer:

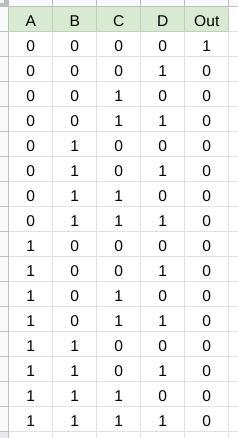

  see attached

Explanation:

The output is always 0, except for the case where all 4 inputs are 0.
