Question

With steps please

Answer 1

Answer: $75\ m$

Step-by-step explanation:

Given

The tower is 45 m high and Clinometer is set at 1.3 m above the ground

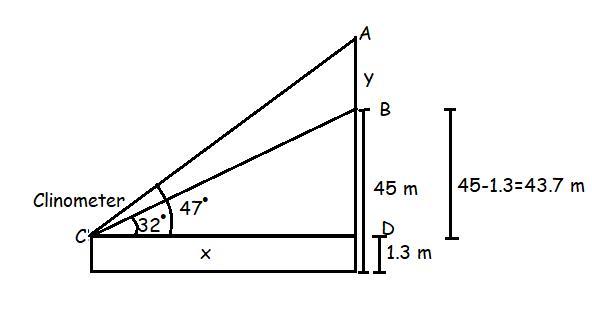

From the figure, we can write

$\Rightarrow \tan 32^{\circ}=\dfrac{43.7}{x}\\\\\Rightarrow x=\dfrac{43.7}{\tan 32^{\circ}}\\\\\Rightarrow x=69.93\ m$

Similarly, for $\triangle ACD$

$\Rightarrow \tan 47^{\circ}=\dfrac{43.7+y}{x}\\\\\Rightarrow 69.93\times \tan 47^{\circ}=43.7+y\\\\\Rightarrow 74.99=43.7+y\\\Rightarrow y=31.29\ m$

Height of the tower is $43.7+31.29\approx 75\ m$
