3 years ago

Can I have some help

Physics

1 answer:

earnstyle [38]3 years ago

4 0

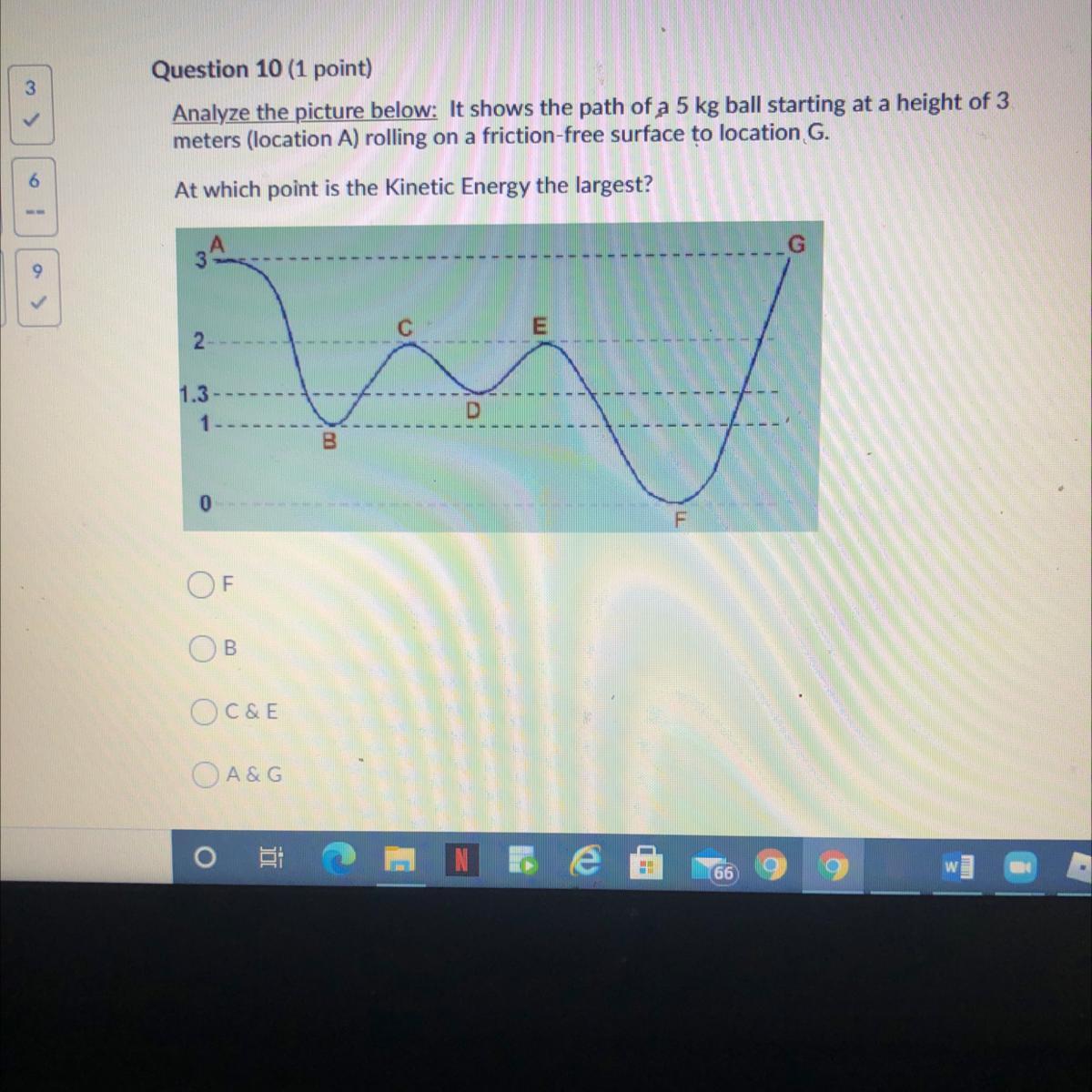

I think is D cuz all Yoou really need to do is look at the graph

You might be interested in

1. A supersonic jet moves with a constant velocity of 220 m/s north. A bicycle moves

daser333 [38]

Answer:

The supersonic jet has a greater acceleration

6 0

3 years ago

Help me with these simple nuclear energy reactions:

olasank [31]

I know what it is but its hard to see

8 0

4 years ago

A pulley system is made of 3 pulley write its velocity ratio

kherson [118]

Almost 3 times fast than normal pulley system

mark me

8 0

3 years ago

Read 2 more answers

A mosquito flaps its wings 600 vibrations per second which produces the annoying 600Hz buzz. The speed of sound is 340 m/s. How

erik [133]

Answer:

$\lambda=0.57m$

Explanation:

The distance traveled by the sound wave between the beats of the wing is its wavelength, since it is defined as the distance traveled by a periodic disturbance that propagates in a cycle, is defined as:

$\lambda=\frac{v}{f}$

Where v is the speed of sound and f the frequency of the wing beats

$\lambda=\frac{340\frac{m}{s}}{600Hz}\\\lambda=0.57m$

8 0

4 years ago

) A 75-kg adult sits at one end of a 9.0-m-long board. His 25-kg child sits on the other end. (a) Where should the pivot be plac

Korvikt [17]

Answer with Explanation:

We are given that

Mass of adult,M=75 kg

Length of board=l=9 m

Mass of child=m=25 kg

a.Let pivot placed at point O so that the board is balanced ignoring the board's mass

Moment about the point O

$75x=25(9-x)$

$75x=225-25x$

$75x+25x=225$

$100x=225$

$x=\frac{225}{100}=2.25 m$

Hence, the pivot placed at 2.25 m from the adult.

b.Mass of board=m''=15 kg

Center of board= $\frac{9}{2}=4.5 m$

Moment about point O

$75x=15(4.5-x)+25(4.5+(4.5-x))$

$75x=67.5-15x+225-25x$

$75x+25x+15=67.5+225$

$115x=292.5$

$x=\frac{292.5}{115}=2.5 m$

Hence, the pivot point is 2.5 m from the adult.

7 0

4 years ago
