3 years ago

Please i could really use some help, please explain if you can <33

Mathematics

1 answer:

Kobotan [32]3 years ago

6 0

Answer:

Step-by-step explanation:

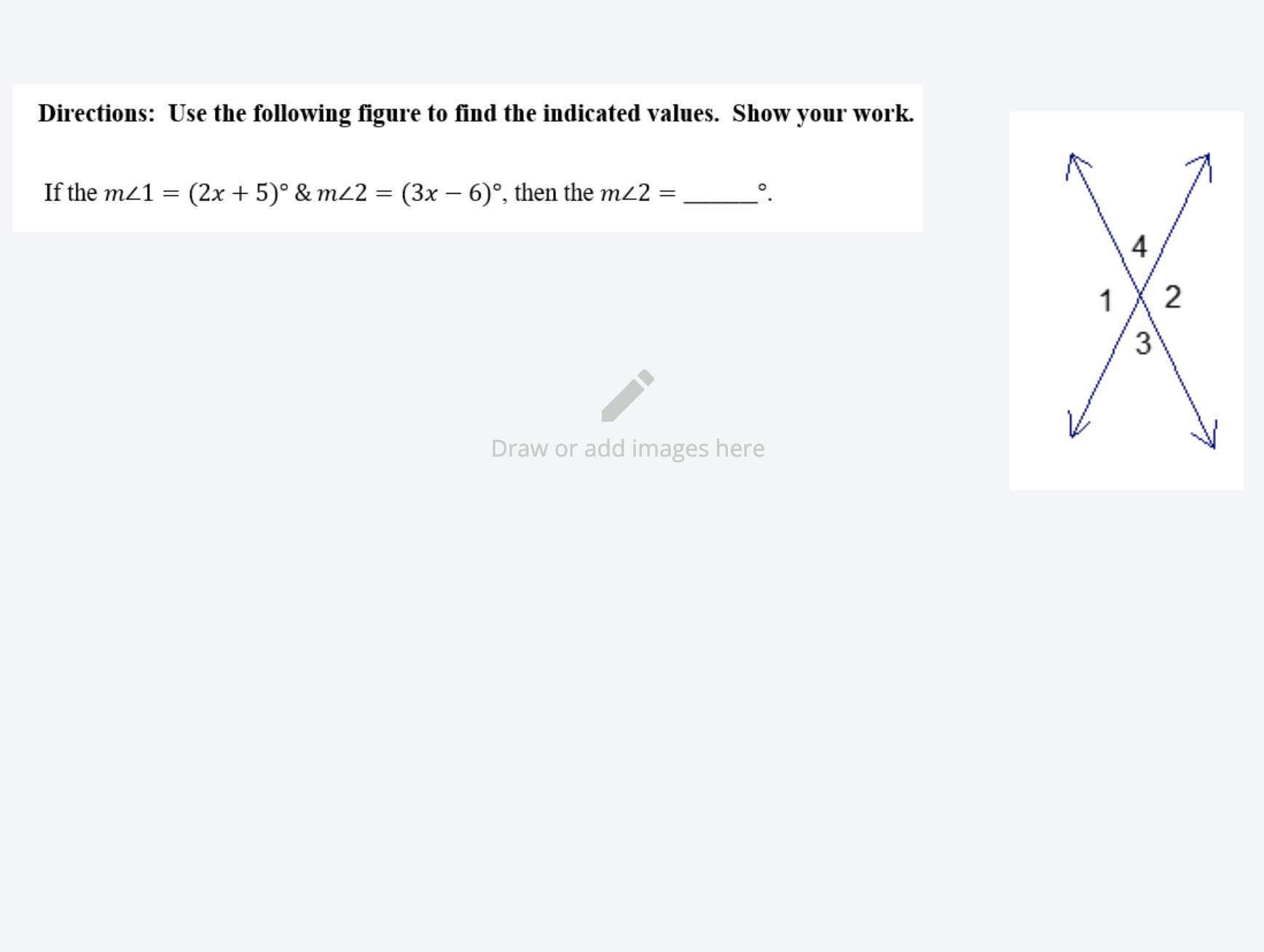

angle 1 = angle 2 because of the vertical angle theorem

2x + 5 = 3x - 6

x = 11

3 (11) - 6

33 - 6

You might be interested in

A closed cylindrical vessel contains a fluid at a 5MPa pressure. The cylinder, which has an outside diameter of 2500mm and a wal

Julli [10]

Answer:

1) Increase in the diameter equals 3.5 mm

2) Increase in the length equals $0.0003724L_{i}$ where $L_{i}$ is the initial length of the vessel.

Step-by-step explanation:

The diametric strain in the vessel is given by

$\epsilon_{D} =\epsilon_{diam}-\nu \epsilon _{axial}$

We have

$\epsilon _{diam}=\frac{\sigma _{hoop}}{E}\\\\\sigma _{hoop}=\frac{\Delta P\times D}{2t}\\\\\therefore \epsilon _{diam}=\frac{\Delta P\times D}{2t\times E}$

Applying values we get

$\therefore \epsilon _{diam}=\frac{5\times 10^{6}\times 2.5}{2\times 20\times 10^{-3}\times 193\times 10^{9}}\\\\\therefore \epsilon _{diam}=\frac{5}{3088}$

Similarly axial strain is given by

$\epsilon _{diam}=\frac{\sigma _{axial}}{E}$

$\sigma _{axial}=\frac{\Delta P\times D}{4t}\\\\\therefore \epsilon _{axial}=\frac{\Delta P\times D}{4t\times E}$

Applying values we get

$\therefore \epsilon _{axial}=\frac{5\times 10^{6}\times 2.5}{4\times 20\times 10^{-3}\times 193\times 10^{9}}\\\\\therefore \epsilon _{diam}=\frac{2.5}{3088}$

Hence The effect of axial strain along the diameter is given by

$-\nu \epsilon _{axial}$

Applying values we get

$-\nu \epsilon _{axial}=-0.27\times \frac{2.5}{3088}=-0.0002185$

hence

$\epsilon _{D} =\frac{5}{3088}-0.0002185\\\\\epsilon =0.00140$

Now by definition of strain we have

$\epsilon _{D} =\frac{D_{f}-D_{i}}{D_{i}}\\\\\therefore D_{f}=D_{i}+\epsilon D_{i}\\\\D_{f}=2.5+0.0014\times 2.5\\\\\therefore D_{f}=2503.5mm$

Increase in the diameter is thus 3.5 mm

Using the same procedure for axial strain we have

$\epsilon_{axial} =\epsilon_{axial}-\nu \epsilon _{diam}$

Applying values we get

$\epsilon_{axial} =\frac{2.5}{3088}-0.27\times \frac{5}{3088}$

$\epsilon_{axial} =0.0003724$

Now by definition of strain we have

$\epsilon _{axial} =\frac{L_{f}-L_{i}}{L_{i}}\\\\\therefore \Delta L=0.0003724L_{i}$

where $L_{i}$ is the initial length of the cylinder.

6 0

4 years ago

What is a scatter plot?<br> I somewhat know the answer, but I just need to know everything about it

EleoNora [17]

A scatter plot (also called scatterplot, scatter graph, scatter chart, or scatter diagram) is a type of plot or mathematical diagram using Cartesian coordinates to display values. For typically two variables for a set of data. Is the points are coded (color/shape/size), one additional variable can be displayed. The data are displayed as a collection of points, each having the value of one variable determining the position on the horizontal axis and the value of the other variable determining the position on the verticals axis.
Hope that’s everything you wanted to know!

7 0

3 years ago

Two trains leave the station at the same time, one heading east and the other west. The eastbound train travels at 95 miles per

alisha [4.7K]

Answer:

It will take 1.6 hours for the two trains to be 336 miles apart.

Step by step explanation:

Given that:

Speed of eastbound train = 95 miles per hour

Speed of westbound train = 115 miles per hour

Combined speed = 95+115 = 210 miles

Distance = 336 miles
