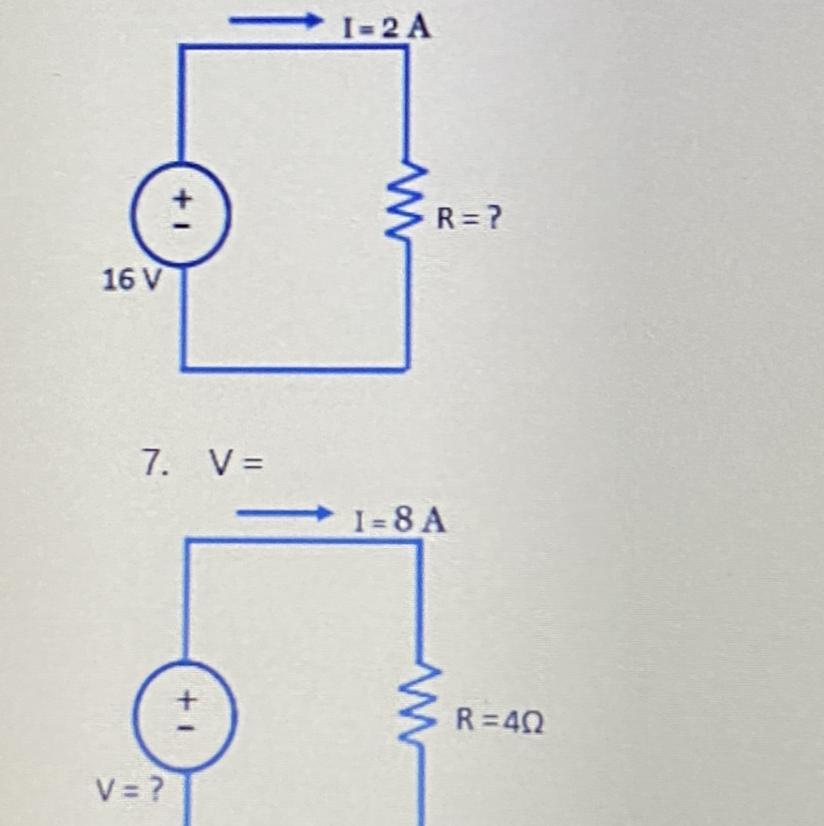

Use the circuits shown to solve each of the following:
1 answer:
Answer:
1. R = 8 ohms 2. V = 32 volts
Step-by-step explanation:
<h3>1. We have,</h3>Voltage, V = 16 V
Current, I = 2 A
We need to find the resistance of the circuit. Using Ohm's law,
V = IR
So,
2. Current, I = 8 A
Resistance, R = 4 ohms
We need to find the voltage of the circuit. Using Ohm's law again,
V = 8 × 4
V = 32 volts
Hence, this is the required solution.
