Draw line segment AB - 7cm and bisect it using compass.
1 answer:
Answer:

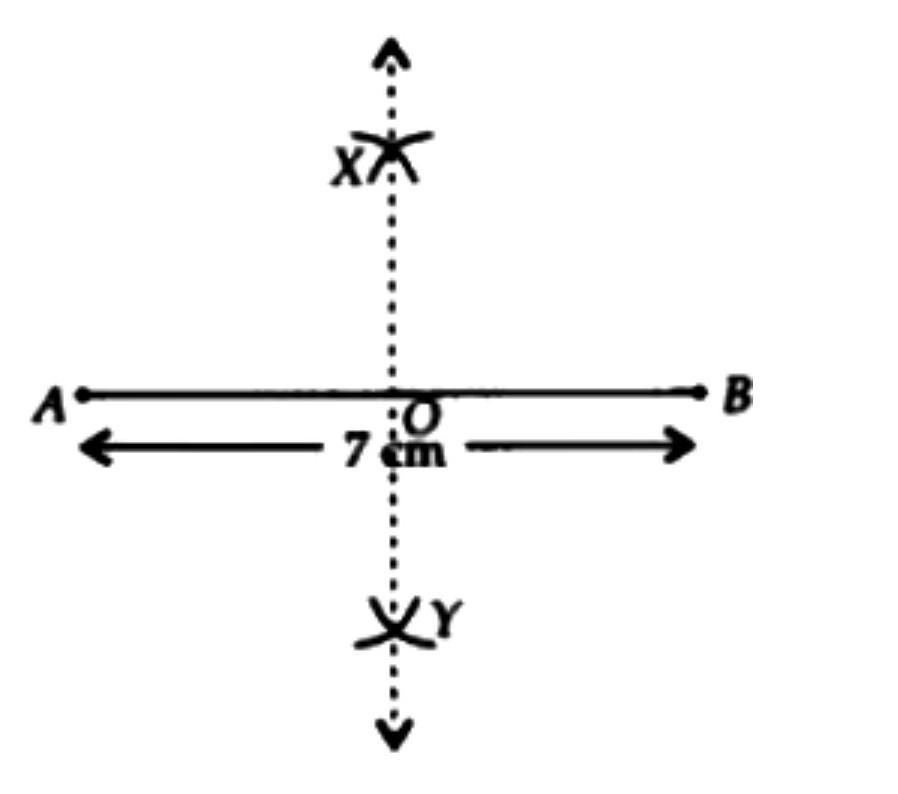

<h2>Your answer is in picture.</h2><h3>Steps of construction: </h3>(i) Draw a line segment AB = 7 cm.
(ii) With A as centre and radius more than half of AB, draw arcs, one on each side of AB.
(iii) With B as centre and same radius as before, draw arcs, cutting the previously drawn arcs at X and Y respectively.
(iv) Now join XY, meeting AB at O.
Thus, XY is the perpendicular bisector of AB.
Step-by-step explanation:
Hope it is helpful....
You might be interested in
Answer:
f(x) = {x-3 for x ≤ -1; -3x+14 for x > 5}
Step-by-step explanation:
To write the piecewise function, we can consider the pieces one at a time. For each, we need to define the domain, and the functional relation.
__
<h3>Left Piece</h3>The domain is the horizontal extent. It is shown as -∞ to -1, with -1 included.
The relation has a slope (rise/run) of +1, and would intersect the y-axis at -3 if it were extended.
The first piece can be written ...
f(x) = x-3 for x ≤ -1
__
<h3>Right Piece</h3>The domain is shown as 5 to ∞, with 5<em> not included</em>.
The relation is shown as having a slope (rise/run) of (-3)/(1) = -3. If extended, it would intersect the point (5, -1), so we can write the point-slope equation as ...
y -(-1) = -3(x -5)
y = -3x +15 -1 = -3x +14
The second piece can be written ...
f(x) = -3x +14 for x > 5
__
<h3>Whole function</h3>Putting these pieces together, we have ...
_____
<em>Additional comment</em>
Sometimes it is convenient to write inequalities in number-line order (using < or ≤ symbols). This gives a visual indication of where the variable stands in relation to the limit(s). Perhaps a more conventional way to write the domain for the second piece is, <em>x > 5</em>.
