Answer:
a) 1.6 m
b) -1, 2 meters
c) 1.8 m
Step-by-step explanation:

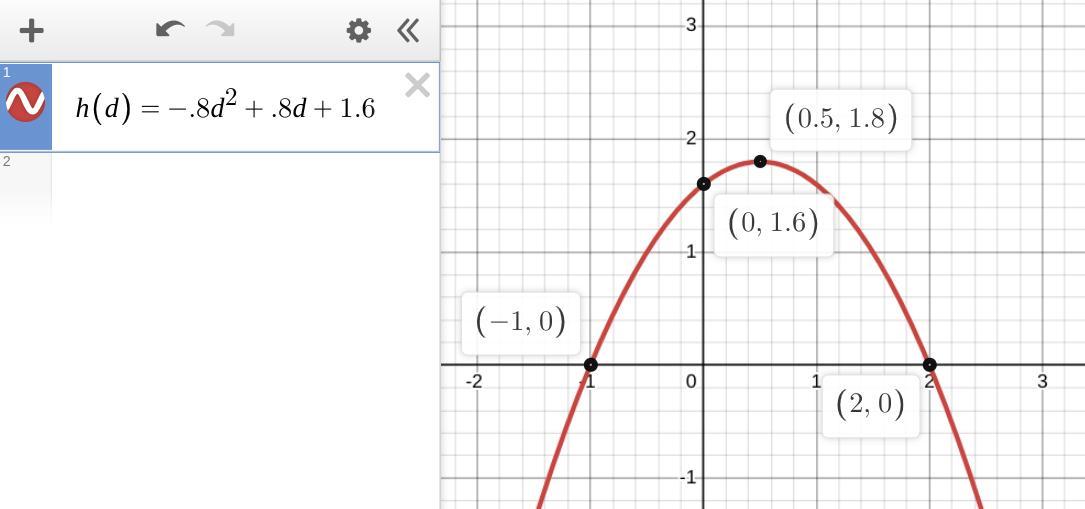

Apparently, technology tools are allowed when solving this problem. They readily show you the x- and y-intercepts and the vertex of the graph.
<h3>a) ledge height</h3>
The height of the ledge is the value of h when d=0. It is the constant in the given equation, and the y-intercept of the graph.
The height of the ledge is 1.6 meters.
<h3>b) roots</h3>
The x-intercepts are the values of d that make h equal to zero. The graph shows them to be ...
d = -1
d = 2 . . . . meters
<h3>c) maximum height</h3>
The maximum height is the "h" coordinate of the vertex (d, h).
The maximum height is 1.8 meters.
__
<em>Additional comment</em>
"x" is the generic independent variable. The horizontal axis of a graph is often called the "x-axis" and places where the graph crosses that axis are called "x-intercepts" even when the independent variable is named something else. Here, the independent variable is "d", not "x".
Similarly, "y" is the generic dependent variable, and the vertical axis of a graph is often called the "y-axis" even when the dependent variable is something else. This is why we refer to h when d=0 as the "y-intercept". It is the point where the graph crosses the vertical axis.
