Question

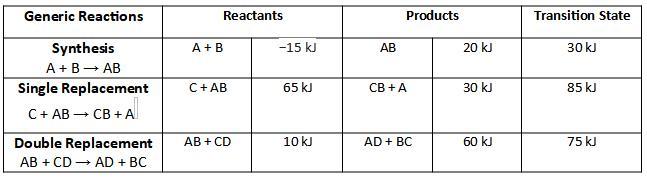

Can someone help me create energy diagrams for these three reactions?

Answer 1

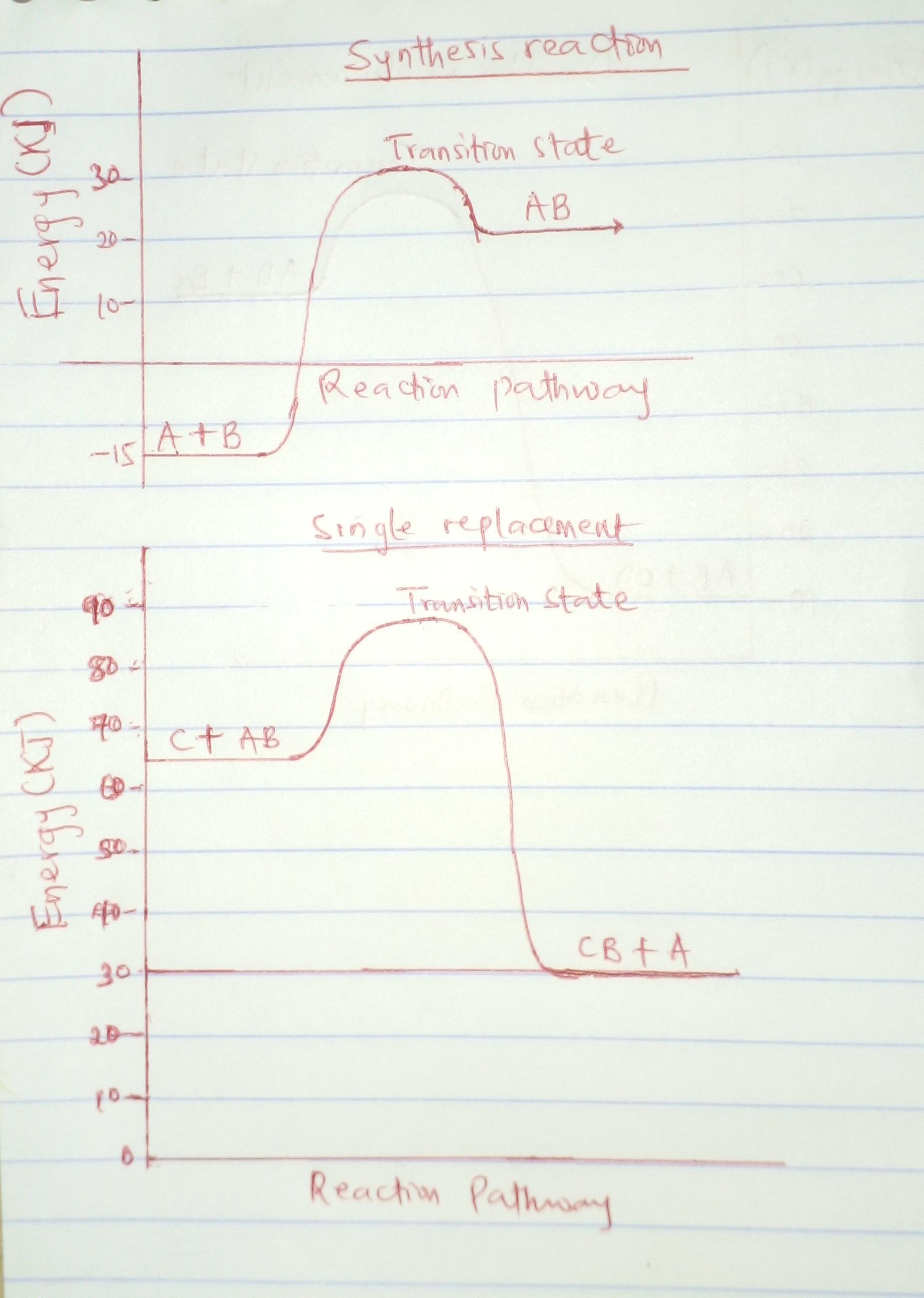

The energy diagrams of the synthesis, single replacement, and double replacement reactions are found in the attached image.

What are energy profile diagrams?

Energy profile diagrams are diagrams which illustrate the potential energy changes that occur when reactant molecule combine to form products.

The energy diagrams shows the potential energy of the reaction, the energy of the transition state of the reaction, the activation energy of the reaction, as well as the potential energy of the products.

From energy diagrams, the enthalpy change of a reaction can be determined. Also, it can also be established whether the reaction is exothermic or endothermic.

For exothermic reactions, the enthalpy change is negative since the potential energy of the reactants is greater than the potential energy of the products.

For endothermic reactions, the enthalpy change is positive since the potential energy of the reactants is less than the potential energy of the products.

Based on this therefore, the energy diagrams of the given reactions have been constructed and are found in the attached image.

In conclusion, energy diagrams are used to show energy changes occurring in a reaction.

Learn more about energy diagrams at: brainly.com/question/6589816

#SPJ1
