design a combinational circuit for a BCD to seven segment code converter that will input a BCD number and output it on a seven s

Question

3 years ago

8

design a combinational circuit for a BCD to seven segment code converter that will input a BCD number and output it on a seven s

egment common anode display. The code converter will only display the number 8. the converter will turn the display OFF for all other valid BCD digits except digit 9 which will never occur

Computers and Technology

1 answer:

Vlad [161] · Answer 1 · 2022-05-09T15:24:38+03:00

Answer:

See explaination

Explanation:

Binary coded decimal:

Binary coded decimal (BCD) is a system of writing numerals that assigns a four-digit binary code to each digit 0 through 9 in a decimal (base-10) numeral. The four-bit BCD code for any particular single base-10 digit is its representation in binary notation.

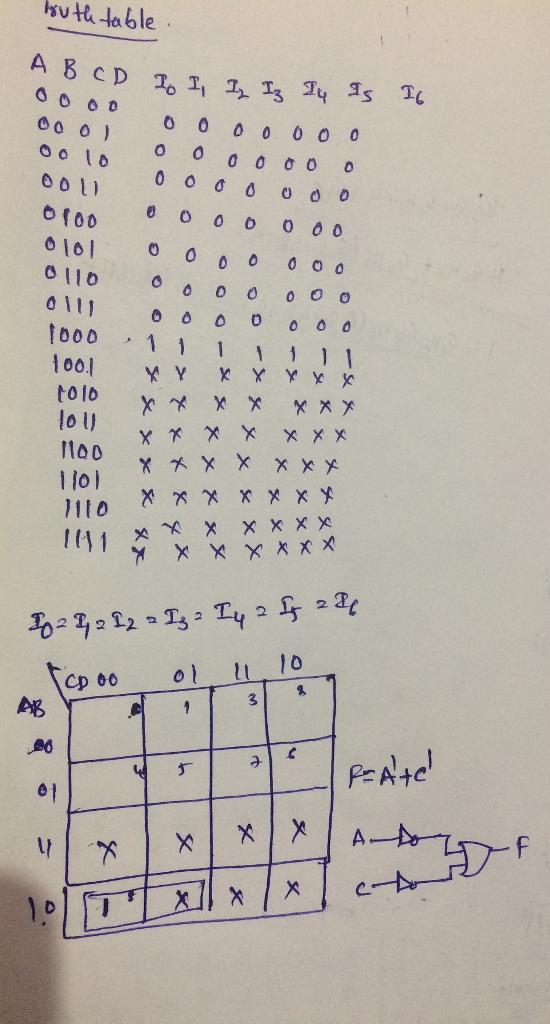

Go to attachment for the step by step solution.
