Question

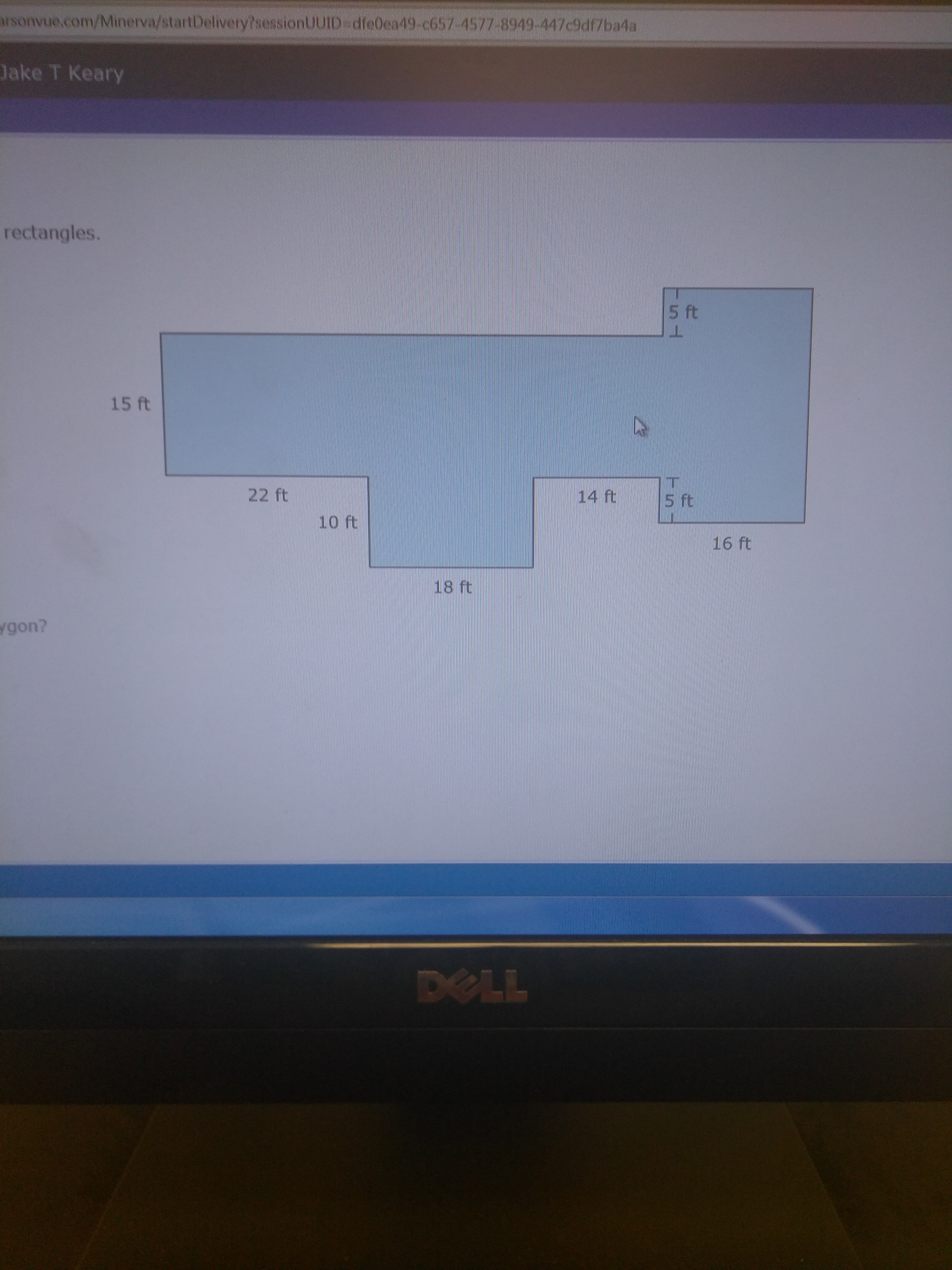

The Diagram shows a polygon composed of rectangles

Answer 1

To find perimeter you add up all the sides so the answer is 210

Answer 2

Answer:

210 feet

Step-by-step explanation:

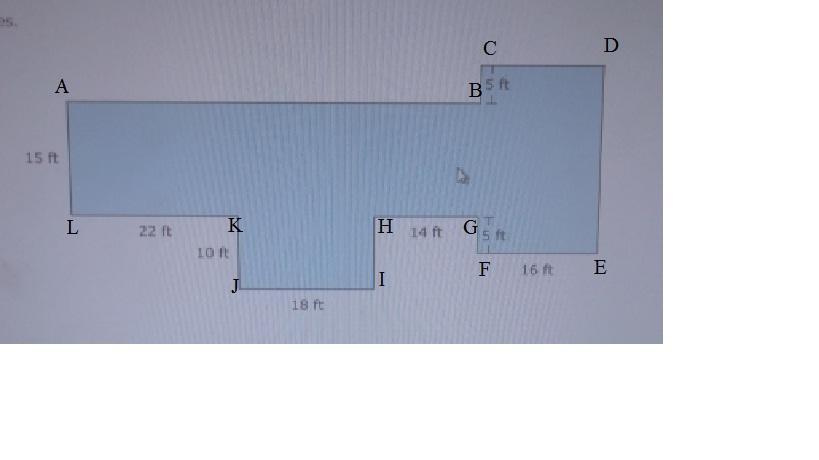

Refer the attached figure

LK = 22 ft

KH=JI = 18 ft.

HG=14 ft.

CD=FE=16 ft.

AL=15 ft.

GF=CB = 5ft.

KJ=HI=10 ft.

CF=CB+BG+GF=5+15+5=25 ft. =DE

AB= LK+KH+HG=22+18+14= 54 ft.

Perimeter of polygon = Sum of all sides

Perimeter of polygon=AL+LK+KJ+JI+HI+HG+GF+FE+DE+CD+CB+BA

                                   =15+22+10+18+10+14+5+16+25+16+5+54

                                   =210

Hence the perimeter of the polygon is 210 feet.
