Two horizontal forces are exerted on a large crate. The first force is 317 N to the right. The second force is 173 N to the left

a. Draw a force diagram for the horizontal forces acting on the crate. b. What is the net force acting on the crate? c. The box is initially at rest. Five seconds later, its velocity is 6.5 m/s to the right. What is the crate's mass?

1 answer:

DENIUS [597]4 years ago

7 0

Answer:

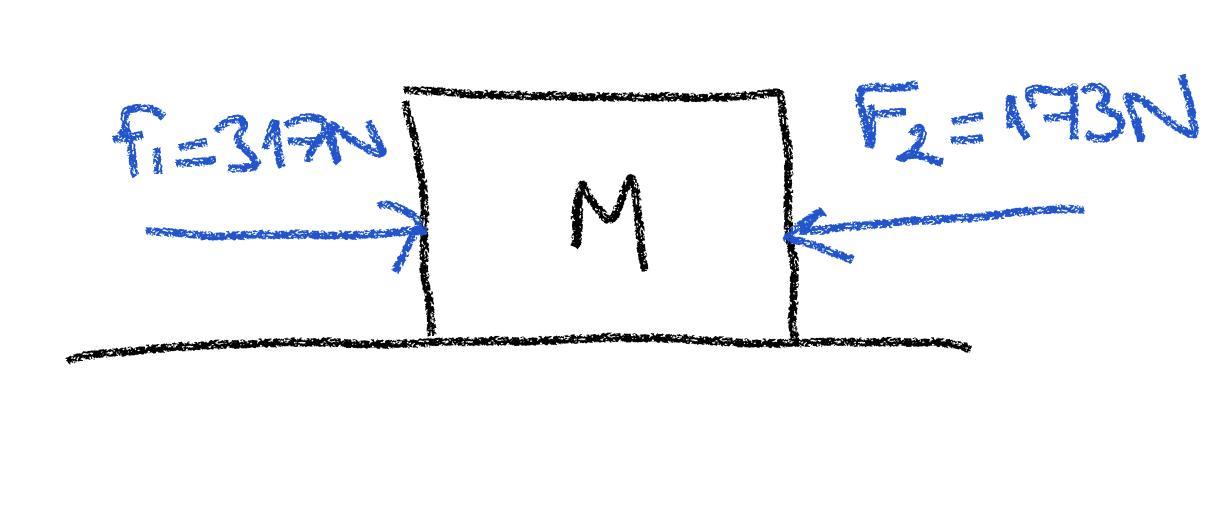

A. Refer to the figure.

B. The net force acting on the crate is

$F_{net} = F_1 - F_2 = 317 - 173 = 144N$

C. We should first find the acceleration of the crate using the following kinematics equation:

$v = v_0 + at\\6.5 = 0 + 5a\\a = 1.3 m/s^2$

Mass of the crate can be found by Newton’s Second Law:

$F = Ma\\M = F/a = 144/1.3 = 110.7 kg$

You might be interested in

Indigenous people sometimes cook in watertight baskets by placing hot rocks into water to bring it to a boil. What mass of 500ºC

scoray [572]

Answer:

m = 4.65 kg

Explanation:

As we know that the mass of the water that evaporated out is given as

$m = 0.0250 kg$

so the energy released in form of vapor is given as

$Q = mL$

$Q = (0.0250)(2.25 \times 10^6)$

$Q = 56511 J$

now the heat required by remaining water to bring it from 15 degree to 100 degree

$Q_2 = ms\Delta T$

$Q_2 = (4 - 0.025)(4186)(100 - 15)$

$Q_2 = 1.41\times 10^6J$

total heat required for above conversion

$Q = 56511 + 1.41 \times 10^6 = 1.47 \times 10^6 J$

now by heat energy balance

heat given by granite = heat absorbed by water

$m(790)(500 - 100) = 1.47 \times 10^6$

$m = 4.65 kg$

4 0

4 years ago

Scientists in a test lab are testing the hardness of a surface before constructing a building. Calculations indicate that the en

trasher [3.6K]

<span>If the maximum permissible limit for depression of the structure is 20 centimeters, the number of floors that can be safely added to the building is </span><span>C. 18</span>

depression = (depression/floor)(# floors) < 20

Here are the following choices:
<span>A. 14
B. 15
C. 18
D. 23</span>

8 0

3 years ago

Which of these questions about skateboarding can be answerd using measurements? (Apex)

solong [7]

the answer is B. hope i helped

8 0

3 years ago

At what distance (in m) is the electrostatic force between two electrons equal to the weight of one?

Ksivusya [100]

Answer:

Explanation:

Given

Electrostatic force between two electrons is equal to weight of one electron

i.e.

$\frac{kq_1q_2}{r^2}=m_e\cdot g$

where $q_1,q_2$ are the charge of particles

$m_e=$ mass of electron

r=distance between them

$\frac{9\times 10^{9}\times 1.6\times 10^{-19}\times 1.6\times 10^{-19}}{r^2}=9.11\times 10^{-31}\times 9.8$

$r=5.08\ m$

3 0

3 years ago

The rod of the fixed hydraulic cylinder is moving to the left with a constant speed vA = 25 mm/s. Determine the corresponding ve

Montano1993 [528]

Explanation:

let vertical distance from A to C be $h=250mm$ the constraint equation is:

$l_{ac} +l_{ab} =L$

we want to find $l_{bc}$ distance can be written as $l_{bc} =h_{1}+h_{2}$ which we will find by using Pythagorean theorem h 1 is a constant and can be written as h:

$h_{2} =\sqrt{l_{ab}^2- s_{A} ^2}$

$l_{ac} =\sqrt{s_{A}^2+ h^2 }$

$l_{ab} =L-\sqrt{s_{A} ^2+h^2 }$

taking derivative w.r.t time we get

$h^._{2} =-v_{B =(l_{ab} l_{ab} ^.-s_{A} v_{A} )/h_{2}$

$l_{ab} ^.=(s_{A} v_{A} )/l_{ab} -L$

given $s_{A} =425mm$ which gives us

$l_{ab} =1050-\sqrt{450^2+250^2} =556.923mm\\\\h_{2} =\sqrt{556.923^2-425^2}=359.914mm$

$l_{ab} ^.=(425.25)/(556.923-1050)=-21.548mm\\\\-v_{B} =(-556.923*21.548-425.25)/(359.914)\\\\v_{B} =62.864mm/s$

5 0
