Answer:
See explanation
Step-by-step explanation:

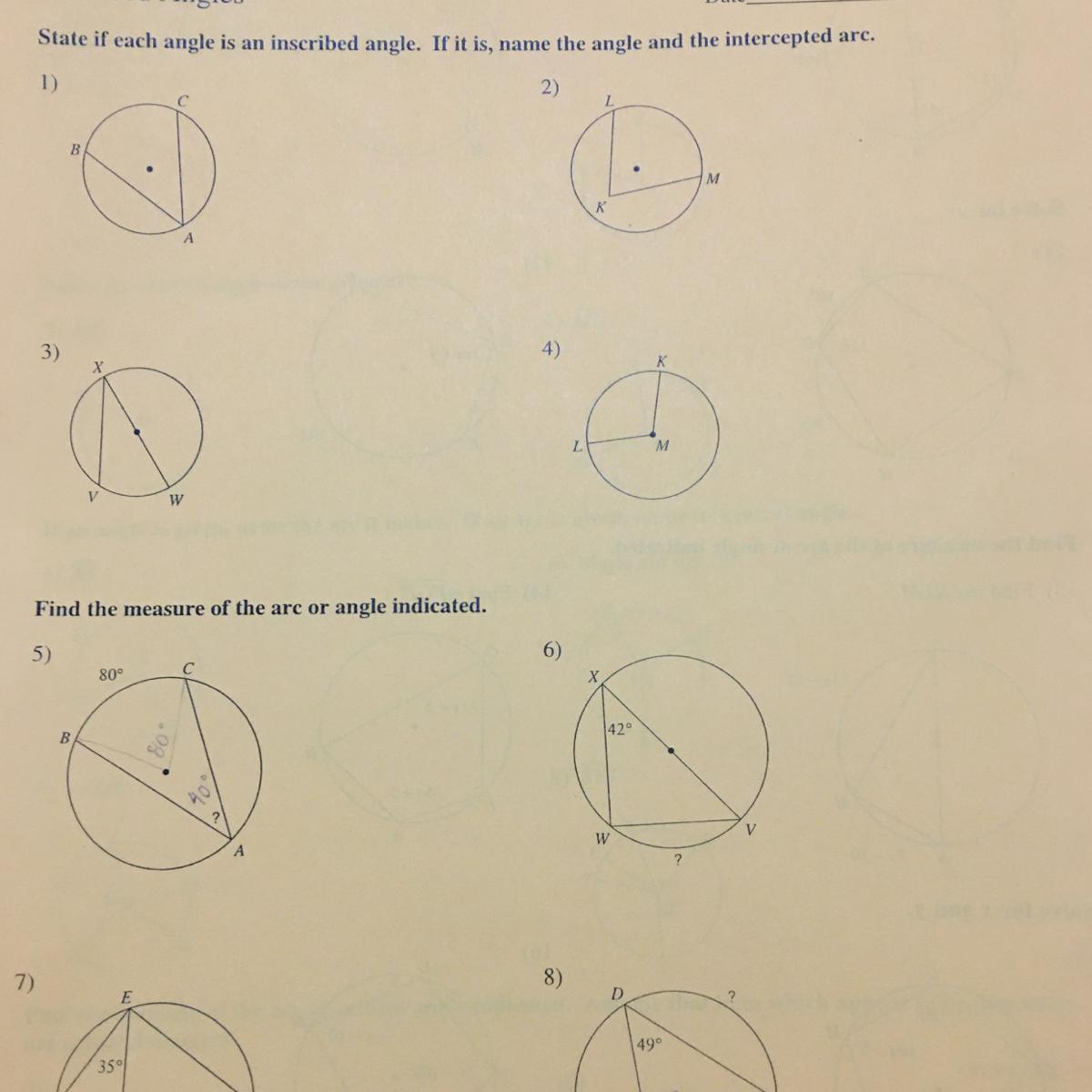

An inscribed angle is the angle with vertex and two endpoints lying on the circle.
1) This option shows an inscribed angle, because vertex A and endpoints B ans C lie on the circle.
2) This option doesn't show an inscribed angle, because vertex K doesn't lie on the circle.
3) This option shows an inscribed angle, because vertex X and endpoints V ans W lie on the circle.
4) This option doesn't show an inscribed angle, because vertex M doesn't lie on the circle.
5) Angle CAB is inscribed angle subtended on the arc BC with measure of 80°, so its measure is 40° (half of the measure of arc BC)
6) Angle WXV is inscribed in the circle and subtended on the arc WV. Hence, the measure of the arc WV is twice the measure of angle VXW and is equal to 84°.
Options 7) and 8) are not visible.
