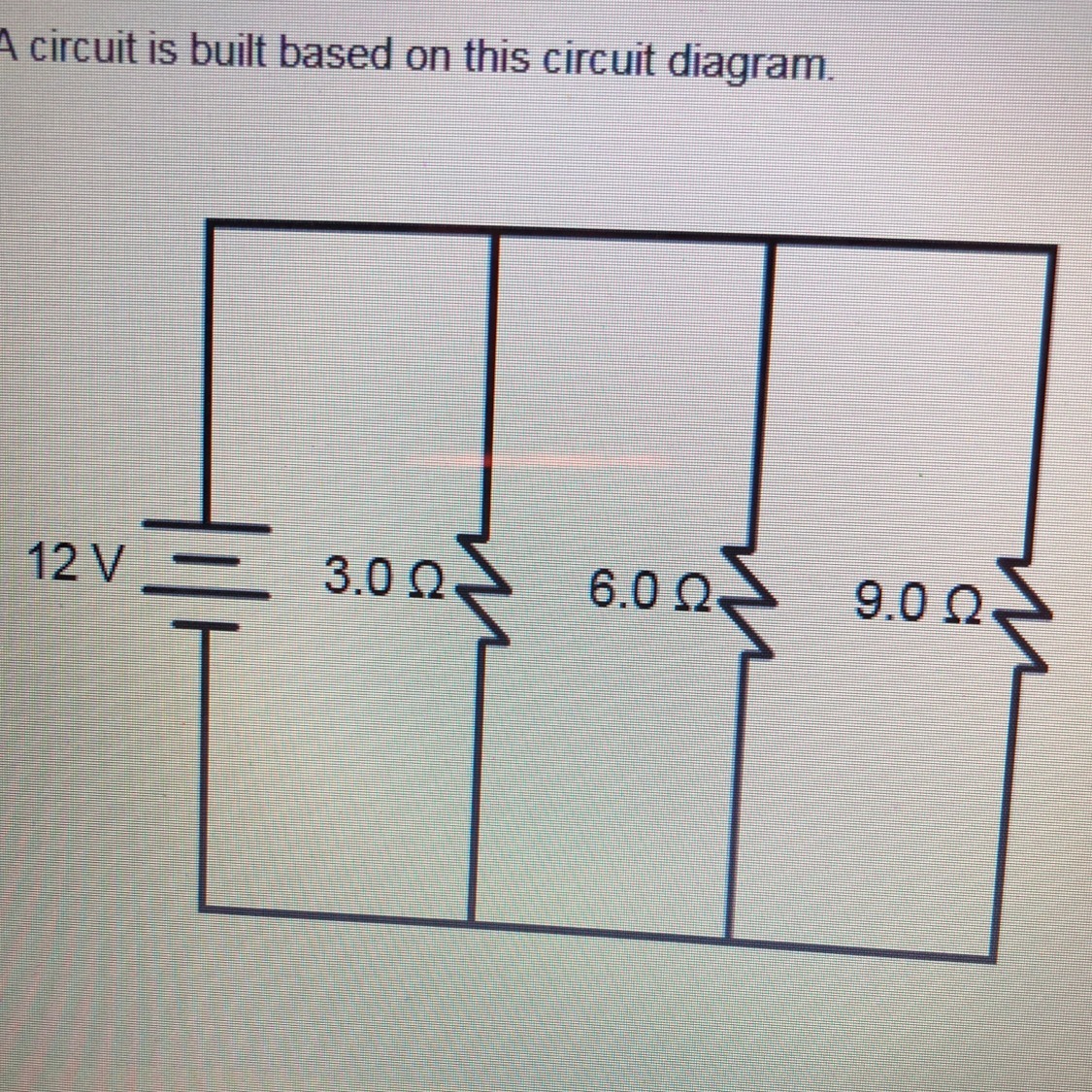

A circuit is built based on this circuit diagram. What is the equivalent resistance of the circuit?

Physics

2 answers:

Rus_ich [418]3 years ago

5 0

All the three resistors are in parallel because the current is getting divided in each branch.
Therefore the equivalent resistance is
1/R = 1/3 + 1/6 + 1/9 = 11/18
Therefore, R = 18/11 = 1.6 ohms

bija089 [108]3 years ago

3 0

1/Req=1/3+1/6+1/9
=3+2+1/9
1/Req=6/9
Req= 9/6
correct answer is 1.5
