In a production facility, 1.6-in-thick 2-ft × 2-ft square brass plates (rho = 532.5 lbm/ft3 and cp = 0.091 Btu/lbm·°F) that are

initially at a uniform temperature of 75°F are heated by passing them through an oven at 1500°F at a rate of 340 per minute. If the plates remain in the oven until their average temperature rises to 900°F, determine the rate of heat transfer to the plates in the furnace.

1 answer:

Gnoma [55]4 years ago

8 0

Answer:

106600 btu/s

<u>note: </u>

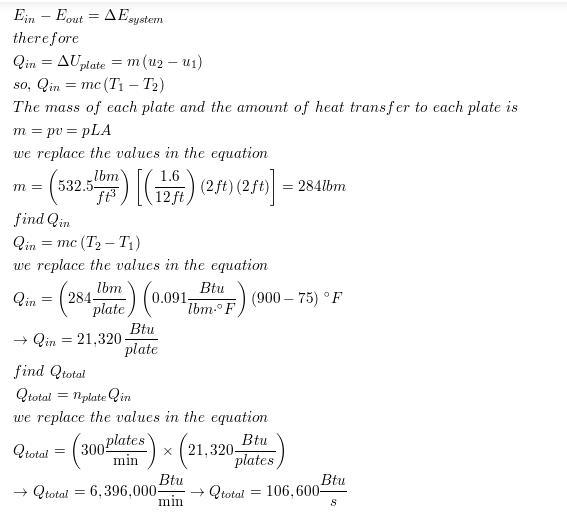

<u><em> solution is attached due to error in mathematical equation. please find the attachment</em></u>
