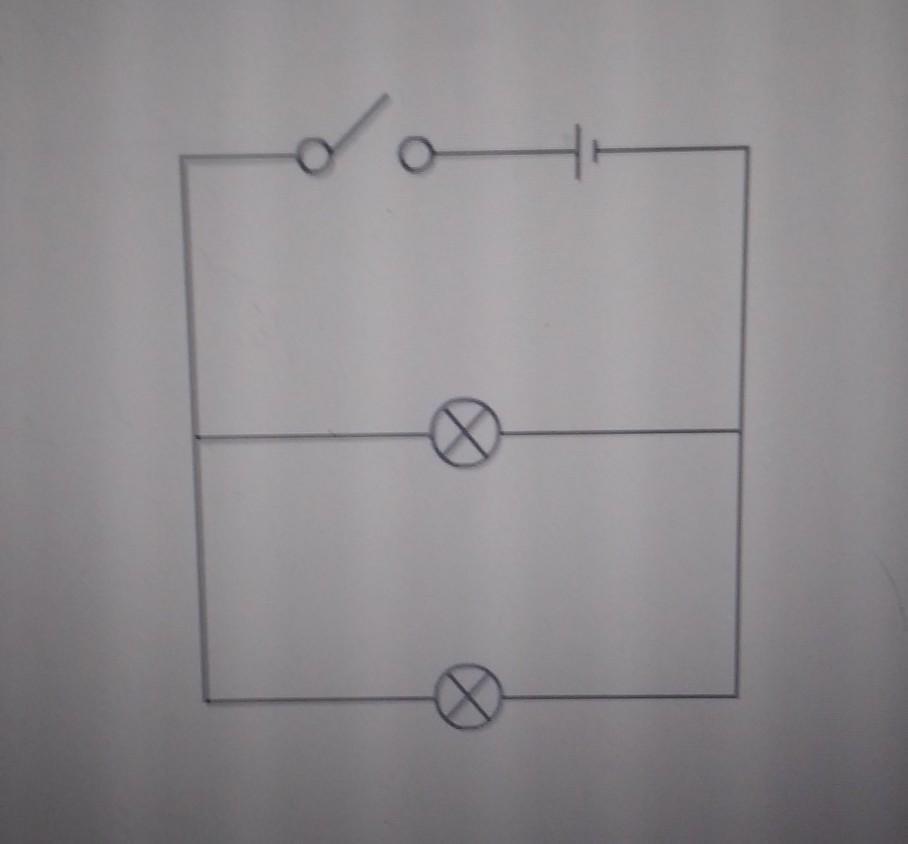

Label the devices in the circuit diagram.bulbswitchbattery​

Physics
2 answers:
Alika [10]4 years ago
9 0
  • the bulb/s are the circles with the cross
  • the switch is in the top left of the diagram
  • the battery is the the top right

diamong [38]4 years ago
4 0

Bulbs=circle with x in it

Switch=open circuit

Battery=two lines in the top right

You might be interested in
If you start skating down this hill, your potential energy will be converted to kinetic energy. At the bottom of the hill, your
baherus [9]
Your potential energy at the top of the hill was (mass) x (gravity) x (height) .

Your kinetic energy at the bottom of the hill is (1/2) x (mass) x (speed)² .

If there was no loss of energy on the way down, then your kinetic energy
at the bottom will be equal to your potential energy at the top.

(1/2) x (mass) x (speed)² = (mass) x (gravity) x (height)

Divide each side by 'mass' :

(1/2) x (speed)² = (gravity) x (height) . . . The answer we get
will be the same for every skater, fat or skinny, heavy or light.
The skater's mass doesn't appear in the equation any more.

Multiply each side by 2 :

(speed)² = 2 x (gravity) x (height)

Take the square root of each side:

<u>Speed at the bottom = square root of(2 x gravity x height of the hill)</u>

We could go one step further, since we know the acceleration of gravity on Earth:

Speed at the bottom = 4.43 x square root of (height of the hill)

This is interesting, because it says that a hill twice as high won't give you
twice the speed at the bottom.  The final speed is only proportional to the
<em>square root </em>of the height, so in order to double your speed, you need to
find a hill that's <em>4 times</em> as high.






6 0
3 years ago
When a light bulb is connected to a 4.5 V battery, a current of 0.16 A passes through the bulb filament. What is the resistance
larisa [96]

Answer:

R = 28.125 ohms

Explanation:

Given that,

The voltage of a bulb, V = 4.5 V

Current, I = 0.16 A

We need to find the resistance of the filament. Using Ohm's law,

V = IR

Where

R is the resistance of the filament

So,

R=\dfrac{V}{I}\\\\R=\dfrac{4.5}{0.16}\\\\R=28.125\ \Omega

So, the resistance of the filament is equal to 28.125 ohms.

5 0
3 years ago
As shown in the diagram below, a rope attached to a 500.-kilogram crate is used to exert a force of 45 newtons at an angle of 65
kaheart [24]

Answer:

19.01 N

Explanation:

F = Force being applied to the crate = 45 N

\theta = Angle at which the force is being applied = 65^{\circ}

Horizontal component of force is given by

F_x=F\cos\theta\\\Rightarrow F_x=45\times \cos65^{\circ}\\\Rightarrow F_x=19.01\ \text{N}

The horizontal component of the force acting on the crate is 19.01 N.

4 0
3 years ago
13. An 80.0 kg climber with a 20.0 kg pack climbs 8848 m to the top of Mount Everest. What is the climber's
miss Akunina [59]
The answer to your question is B
7 0
3 years ago
Two kilograms of air is contained in a rigid wellinsulated tank with a volume of 0.6 m3 . The tank is fitted with a paddle wheel
wolverine [178]

Answer:

0.3\ \text{m}^3/\text{kg}

36\ \text{kJ}

18\ \text{kJ/kg}

Explanation:

V = Volume of air = 0.6\ \text{m}^3

P = Power = 10 W

t = Time = 1 hour

m = Mass of air = 2 kg

Specific volume is given by

v=\dfrac{V}{m}\\\Rightarrow v=\dfrac{0.6}{2}\\\Rightarrow v=0.3\ \text{m}^3/\text{kg}

The specific volume at the final state is 0.3\ \text{m}^3/\text{kg}

Work done is given by

W=Pt\\\Rightarrow W=10\times 60\times 60\\\Rightarrow W=36000\ \text{J}=36\ \text{kJ}

The energy transfer by work, is 36\ \text{kJ}

Change in specific internal energy is given by

\Delta u=\dfrac{Q}{m}+\dfrac{W}{m}\\\Rightarrow \Delta u=0+\dfrac{36}{2}\\\Rightarrow \Delta u=18\ \text{kJ/kg}

The change in specific internal energy of the air is 18\ \text{kJ/kg}

8 0
3 years ago
Other questions:
  • A charge Q is placed on the x axis at x = +4.0 m. A second charge q is located at the origin. If Q = +75 nC and q = −8.0 nC, wha
    6·1 answer
  • What is the volume of an object that has a density of 65g/cm3 and a mass of 130g.
    12·1 answer
  • Difference between perception and perspective
    6·1 answer
  • A 0.500-kg stone is moving in a vertical circular path attached to a string that is 75.0 cm long. The stone is moving around the
    7·1 answer
  • You have to design a loop-the-loop for a new amusement park so that when each car passes the top of the loop inverted (upside-do
    12·1 answer
  • 39.Explain the working mechanism of a mercury barometer.
    15·1 answer
  • You instead want to make sure the battery for your string of lights will last as long as possible. A battery will last longer if
    13·1 answer
  • The _____________ experiences a temperature increase primarily due to the absorption of gamma rays and X-rays.
    6·1 answer
  • Pls help 100 points plssssssss
    10·2 answers
  • A train travels a distance of 20miles for 50min. Calculate the speed of the train.​
