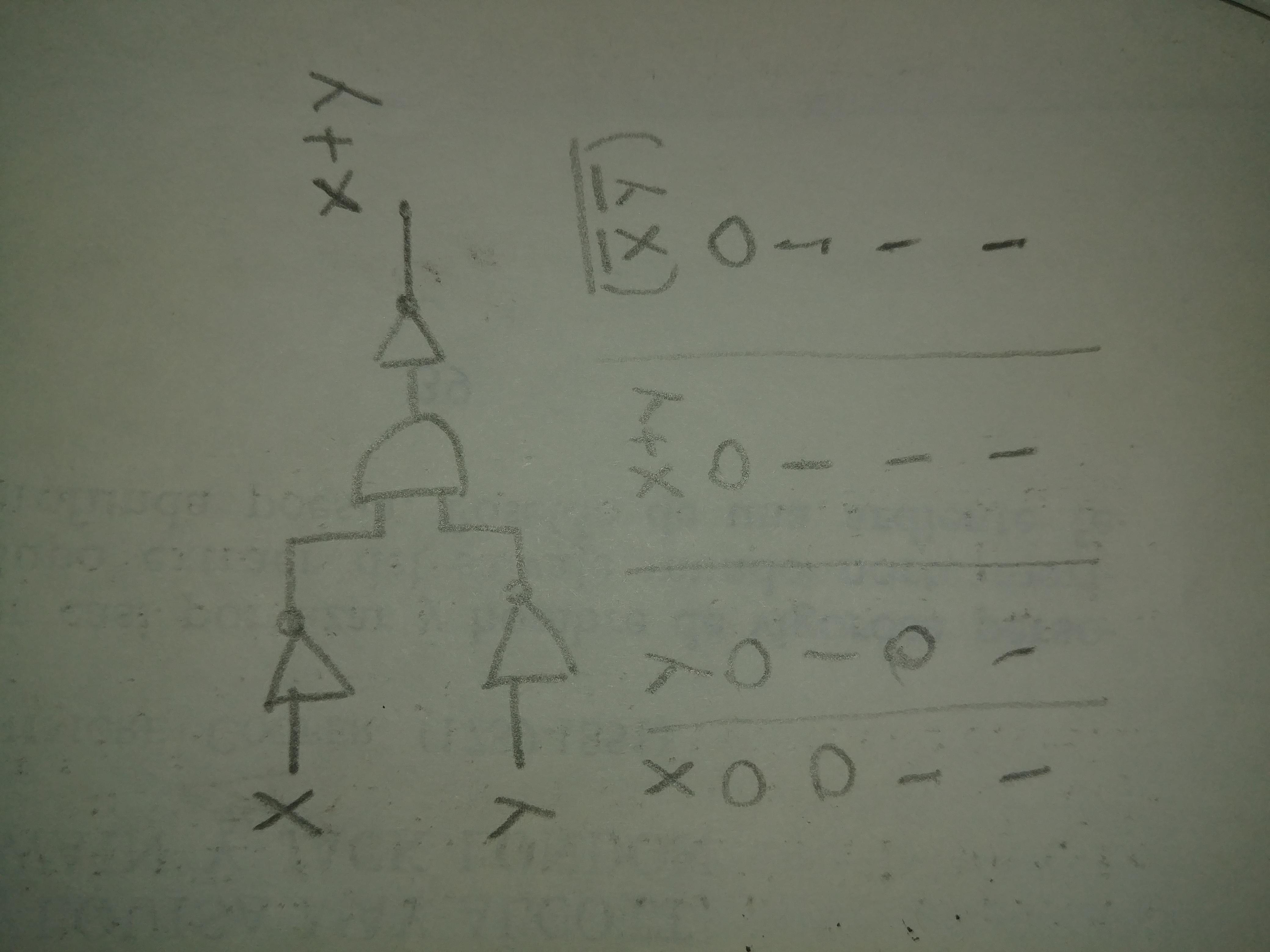

Show how can you make an OR logic using AND and NOT logic gates.

Computers and Technology
1 answer:
mihalych1998 [28]4 years ago
5 0

Answer:

(x+y)=`(`x*`y)

Explanation:

We have to apply some properties of logic gates (as involution and DeMorgan's law) in order to get the answer:

`(`x)=x\\and\\`(x+y)=`x*`y

applying the last two properties:

(x+y)=`(`(x+y))\\(x+y)=`(`x*`y)

So if we negate x and y, multiply them and then negate them again, it will be equal to a logic sum.
