Question

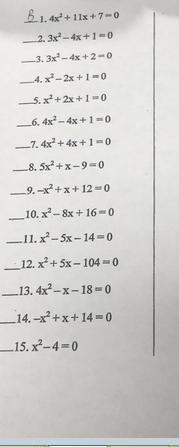

Solve graphically...........

Answer 1

Answer:

The answer by graphical representation are given below. All the 1 graphs are attached with the question in top of them

Answer 2

Answer:

1.

    x = -1 or x = -1.75

2.

    x = 1 or x = 1/3

3.

    No solution

4.

    x = 1

5.

    x = -1

6.

    x = 1/2

7.

    x = -1/2

8.

    x = -1.45 or x = 1.25

9.

     x = -3 or x = 4

10.

     x = 4

11.

     x = -2 or x = 7

12.

     x = -13 or x = 8

13.

     x = -2 or x = 2.25

14.

     x = -3.27 or x = 4.27

15.

      x = 2 or x = -2

Step-by-step explanation:

To solve a quadratic equation graphically we simply graph the function and note the points where the function intersects with the x-axis (the line y =0).

Consider the quadratic equation in number 11;

$x^{2} -5x-14=0$

In order to solve the equation graphically we plot the function;

$y=x^{2} -5x-14$

The x-coordinate(s) of the point(s) where this function intersects with the x-axis will be the solution to the original quadratic equation;

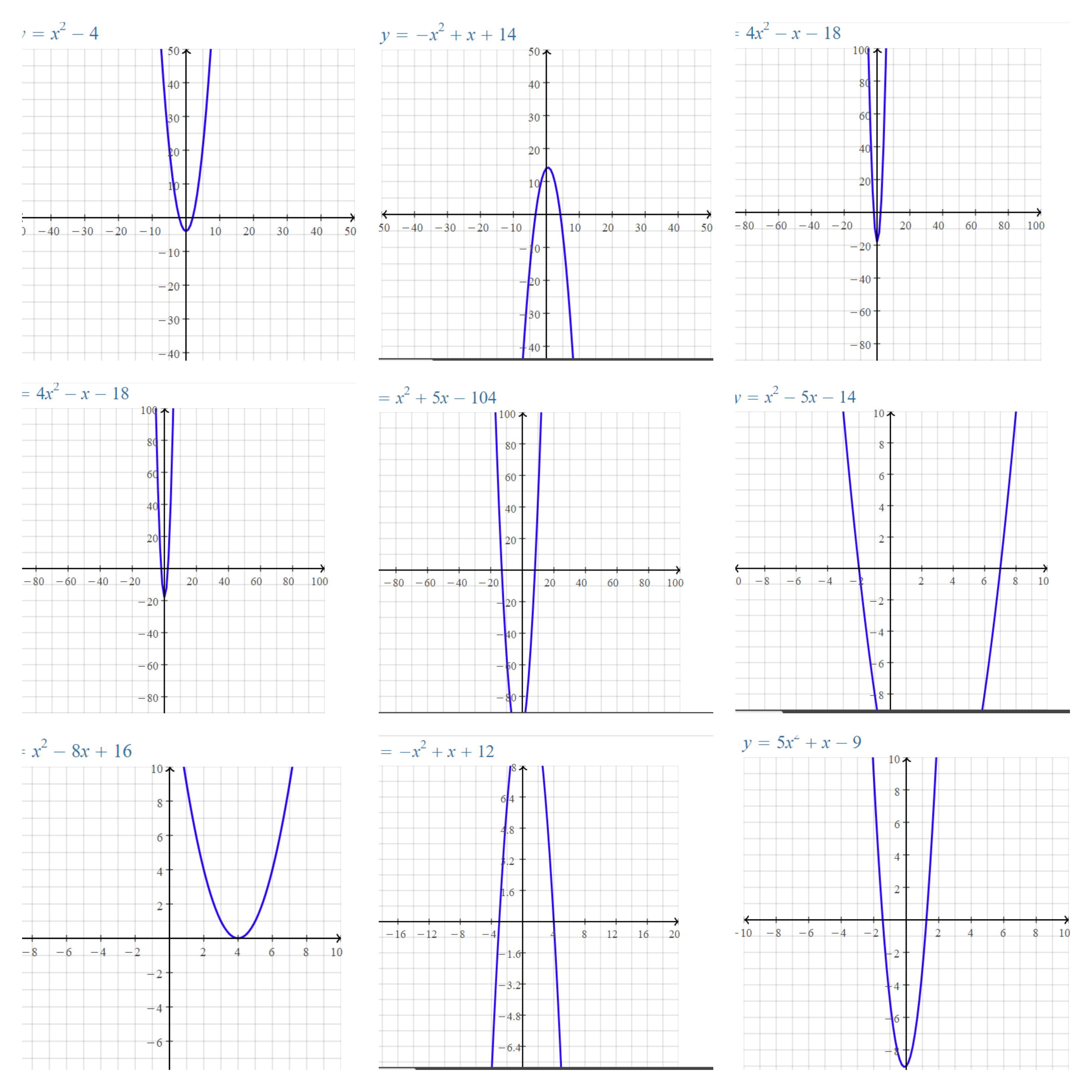

We can use technology to plot the function as shown by the attachment below;

The function $y=x^{2} -5x-14$ crosses the line y = 0 (x-axis) at the points; x = -2 and x = 7.

The solutions to the given quadratic equation are thus;

x = -2 or x = 7

Lastly, if the plotted function does not intersect with the x-axis then the original quadratic equation has no roots or solutions;

This applies to question 3 as seen from the second attachment below;
