Draw a tree diagram to show the sample space of a toss of two dice. Denote the event of an even number on the 1st roll or a sum
of 2 on the tree diagram.
2 answers:
Answer:

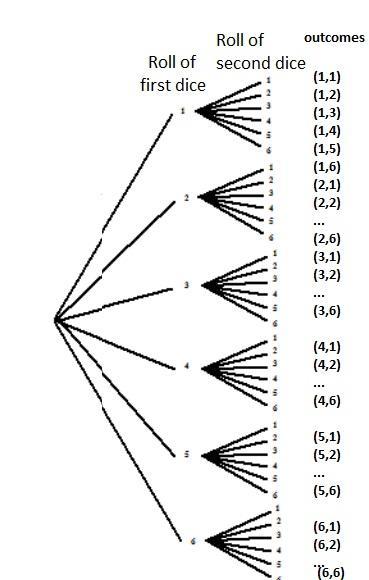

The tree diagrams are shown below.
Step-by-step explanation:
If dice is rolled then the possible outcomes are 1,2,3,4,5,6.
After that the second dice is rolled. So, the possible outcomes for second dice are 1,2,3,4,5,6.
Total sample space of a toss of two dice is
S = {(1,1), (1,2), (1,3), (1,4), (1,5), (1,6),(2,1), (2,2), (2,3), (2,4), (2,5), (2,6),(3,1), (3,2), (3,3), (3,4), (3,5), (3,6),(4,1), (4,2), (4,3), (4,4), (4,5), (4,6),(5,1), (5,2), (5,3), (5,4), (5,5), (5,6),(6,1), (6,2), (6,3), (6,4), (6,5), (6,6)}
Even number on the 1st roll. It means possible outcomes for first roll are 2,4,6.
A={(2,1), (2,2), (2,3), (2,4), (2,5), (2,6),(4,1), (4,2), (4,3), (4,4), (4,5), (4,6),(6,1), (6,2), (6,3), (6,4), (6,5), (6,6)}
Sum of 2 rolls is even. The sum of two even numbers is even and sum of two odd numbers is even.
B={(1,1), (1,3), (1,5), (2,2), (2,4), (2,6),(3,1), (3,3), (3,5), (4,2), (4,4), (4,6),(5,1), (5,3), (5,5),(6,2), (6,4), (6,6)}
Even number on the 1st roll or sum of 2 rolls is even.
A ∪ B = {(1,1), (1,3), (1,5),(2,1), (2,2), (2,3), (2,4), (2,5), (2,6),(3,1), (3,3), (3,5), (4,1), (4,2), (4,3), (4,4), (4,5), (4,6),(5,1), (5,3), (5,5), (6,1), (6,2), (6,3), (6,4), (6,5), (6,6)}
