Answer:
in a relationship that maps elements from one set (the inputs) into elements from another set (the outputs), the usual notation for the ordered pairs is:
(x, y), where x is the input and y is the output.

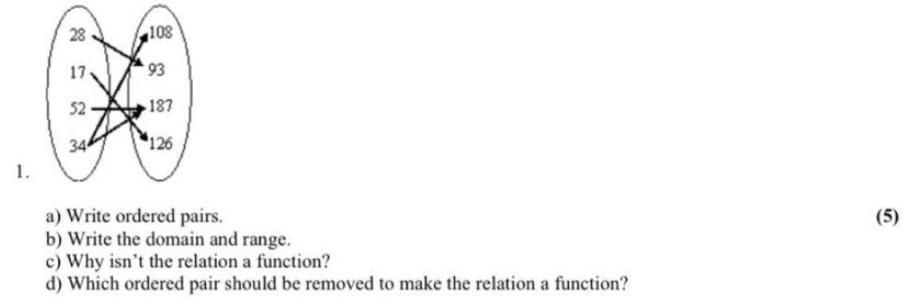

In this case, the point where the arrow starts is the input, and where the arrow ends is the output.
a)
The ordered pairs are:
(28, 93)
(17, 126)
(52, 187)
(34, 108)
(34, 187)
b) The domain is the set of the inputs, in this case the domain is the set where all the arrows start, then the domain is:
{17, 28, 34, 52}
And the range is the set of the outputs, in this case the range is:
{93, 108, 126, 187}
c) A function is a relationship where the elements from the domain, the inputs, can be mapped into only one element from the range.
In this case, we can see that the input {34} is being mapped into two different outputs, then this is not a function.
d) We can remove one of the two ordered pairs where the input is {34},
So for example, we could remove:
(34, 108)
And then the relation would be a function.
