Question

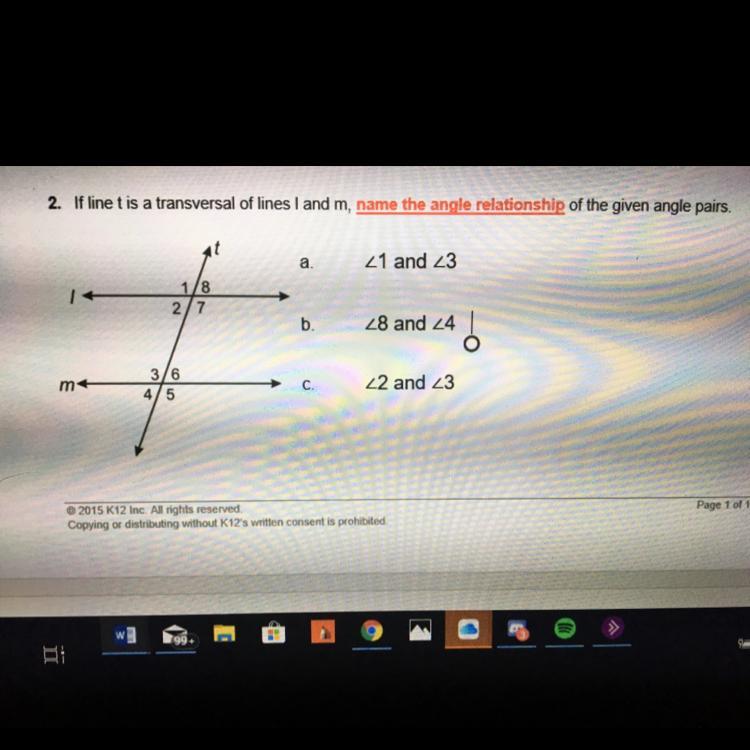

If line T is a transversal of lines I and m, name the angel relationship of the given angle pairs

Answer 1

Answer:

a.Corresponding angles

b.Alternate exterior angles

c.Consecutive interior angles

Step-by-step explanation:

a.$\angle 1,\angle3$ are corresponding angles.

• Two angles on the same side of the transversal either below or above of the two lines are corresponding angles.

b.$\angle 4,\angle8$ are alternate exterior angles.

• Pair of angles in which one arm of each of the angles lies on opposite sides of the transversal.

c.$\angle 2,\angle3$ are consecutive interior angles.

Consecutive interior angles are also called co-interior angles.

• Angles which are lying on the same side of a transversal cutting across the the two lines which are parallel.

So the pair of $1\ and\ 3$ are corresponding angles the pair of $4\ and\ 8$ are alternate exterior angles,the pair of $2\ and\ 3$ are consecutive interior angles.
