Answer:
The graph below.
I know it might not be correct but I hope it helps somewhat!
10pts and I’ll mark brainliest! (Also EXPLAIN the reasoning you used to write the expression)
1 answer:
9514 1404 393
Answer:
area = x(3x +10)
Step-by-step explanation:

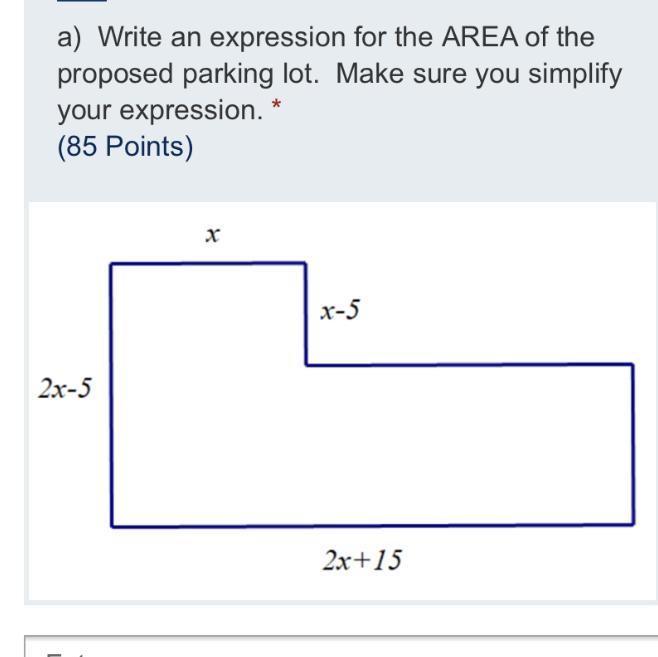

The lengths of the unmarked sides are found as the difference between the lengths of the parallel marked sides.
horizontal unmarked = (2x+15) -x = x +15
vertical unmarked = (2x -5) -(x -5) = x
The area of the figure is the sum of the areas of parts of the figure. The area can be divided several ways. One is shown in the attachment, along with the areas of the parts and of the whole.
The whole area is ...
x(2x -5) +x(x +15) = x((2x -5) +(x +15)) = x(2x -5 +x +15) = x(3x +10)
