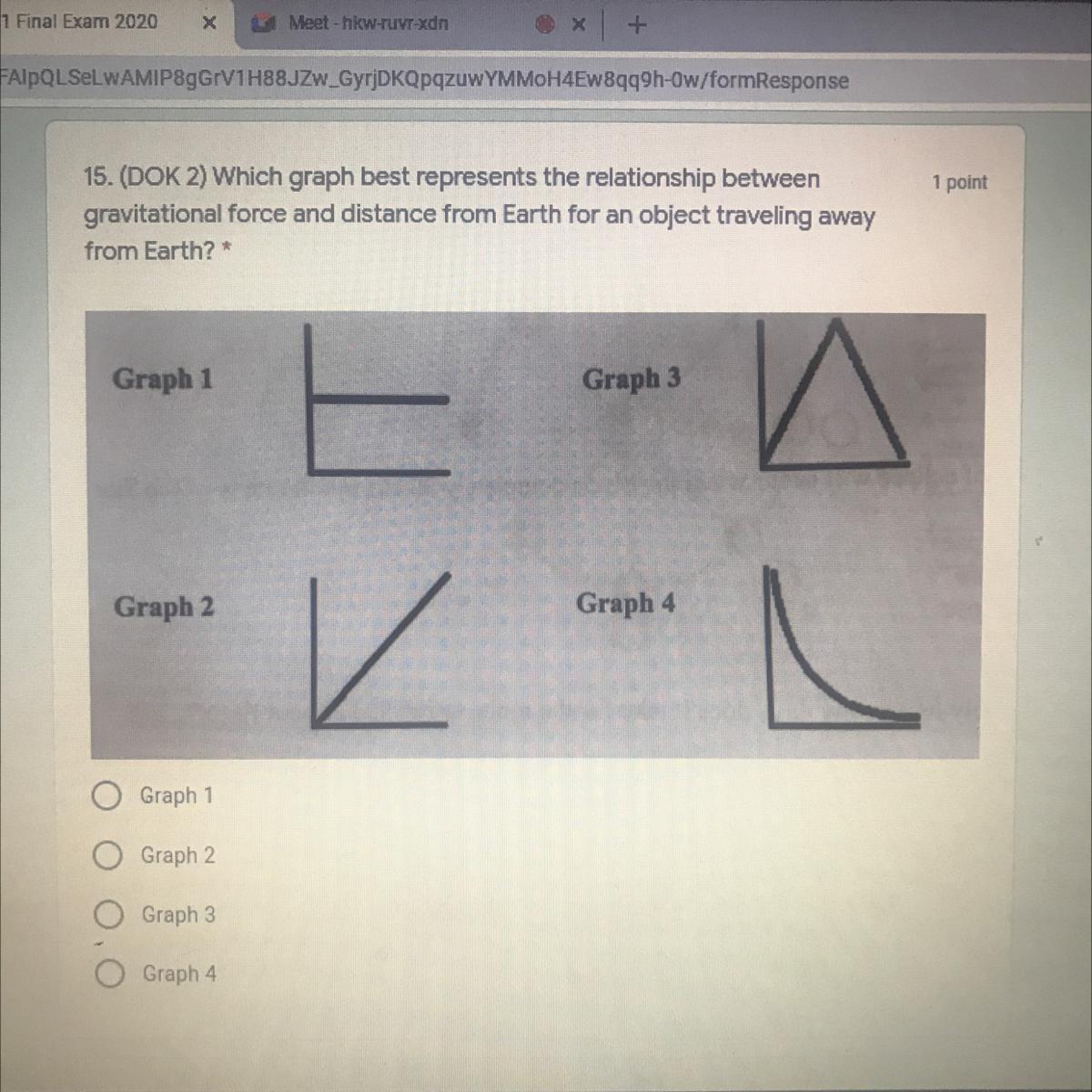

Can someone help me I only have 5 minutes left.

Chemistry

1 answer:

defon3 years ago

6 0

Graph 4. Graph 4 is the answer but I need 20 characters

You might be interested in

WHO WANTS 20 Points PLEASE GIVE RIGHT ANSWER!!!

DIA [1.3K]

1996,1997,1999,1998,2000 that will be 4

5 0

3 years ago

Read 2 more answers

form a hypothesis sharks don't have swim bladders and must move constantly or they sink. hypothesize about the amount of food th

MariettaO [177]

Sharks have to move often and not slowly and have to eat more than a bony fish

3 0

3 years ago

Calculate the percentage of copper in copper oxide

WITCHER [35]

Well, look up the atomic weights of copper and oxygen; add them appropriately; divide the total for the copper by the total for the molecule; then multiply by 100 to get it as a percentage.

5 0

3 years ago

What happened to the apple over time?

DIA [1.3K]

The apple over time got atten

3 0

3 years ago

Calculate the EMF between copper and silver Ag+e-E=0.89v<br>Cu=E=0.34v

bogdanovich [222]

Answer:

Depending on the $E^\circ$ value of $\rm Ag^{+} + e^{-} \to Ag\; (s)$ , the cell potential would be:

$0.55\; \rm V$ , using data from this particular question; or
approximately $0.46\; \rm V$ , using data from the CRC handbooks.

Explanation:

In this galvanic cell, the following two reactions are going on:

The conversion between $\rm Ag\; (s)$ and $\rm Ag^{+}$ ions, $\rm Ag^{+} + e^{-} \rightleftharpoons Ag\; (s)$ , and
The conversion between $\rm Cu\; (s)$ and $\rm Cu^{2+}$ ions, $\rm Cu^{2+}\; (aq) + 2\, e^{-} \rightleftharpoons \rm Cu\; (s)$ .

Note that the standard reduction potential of $\rm Ag^{+}$ ions to $\rm Ag\; (s)$ is higher than that of $\rm Cu^{2+}$ ions to $\rm Cu\; (s)$ . Alternatively, consider the fact that in the metal activity series, copper is more reactive than silver. Either way, the reaction is this cell will be spontaneous (and will generate a positive EMF) only if $\rm Ag^{+}$ ions are reduced while $\rm Cu\; (s)$ is oxidized.

Therefore:

The reduction reaction at the cathode will be: $\rm Ag^{+} + e^{-} \to Ag\; (s)$ . The standard cell potential of this reaction (according to this question) is $E(\text{cathode}) = 0.89\; \rm V$ . According to the 2012 CRC handbook, that value will be approximately $0.79\; \rm V$ .

The oxidation at the anode will be: $\rm Cu\; (s) \to \rm Cu^{2+} + 2\, e^{-}$ . According to this question, this reaction in the opposite direction ( $\rm Cu^{2+}\; (aq) + 2\, e^{-} \rightleftharpoons \rm Cu\; (s)$ ) has an electrode potential of $0.34\; \rm V$ . When that reaction is inverted, the electrode potential will also be inverted. Therefore, $E(\text{anode}) = -0.34\; \rm V$ .

The cell potential is the sum of the electrode potentials at the cathode and at the anode:

$\begin{aligned}E(\text{cell}) &= E(\text{cathode}) + E(\text{anode}) \\ &= 0.89 \; \rm V + (-0.34\; \rm V) = 0.55\; \rm V\end{aligned}$ .

Using data from the 1985 and 2012 CRC Handbook:

$\begin{aligned}E(\text{cell}) &= E(\text{cathode}) + E(\text{anode}) \\ &\approx 0.7996 \; \rm V + (-0.337\; \rm V) \approx 0.46\; \rm V\end{aligned}$ .

5 0

4 years ago
