Question

A new school is being built in the local school district. It will have three computer labs with 28 computers each. There will be 58 classrooms with 2 computers each that need to be on one sub-subnet. The office staff and administrators will need 7 computers. The guidance and attendance office will have 5 computers. The school has been given the address 223.145.75.0/24.
Complete the information required below.

Subnet Subnet Mask (/X) Subnet Address First Usable Host Last Usable Host Broadcast Address
1

2

3

4

5

6

7

8

9

10

Answer 1

Answer:

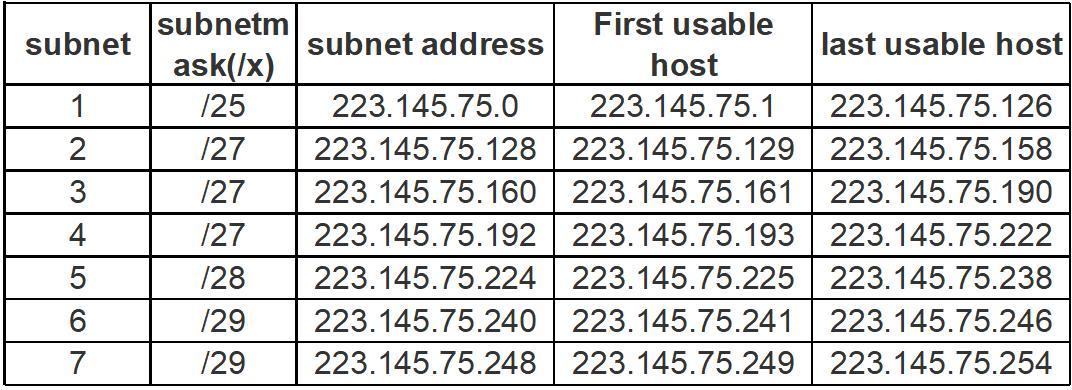

The table is formed as attached figure.

Explanation:

Subnets can use specific number of hosts so /25 can host 128 hosts, reducing by a factor of 2 leading to /30 as with only 4 hosts. Thus the subnets are alloted as indicated in the attached image.
