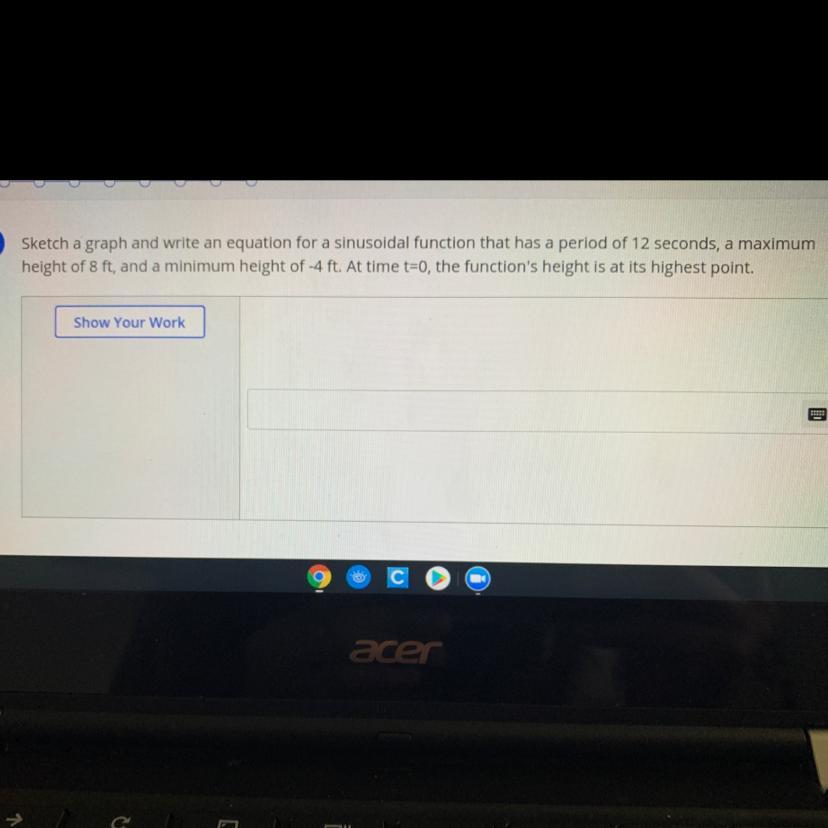

sketch a graph and write an equation for a sinusoidal function that has a period of 12 seconds, a maximim height of 8ft and a mi
nimim height of -4 ft. At a time t=0, the function's height is at its highest point.
1 answer:
9514 1404 393
Answer:

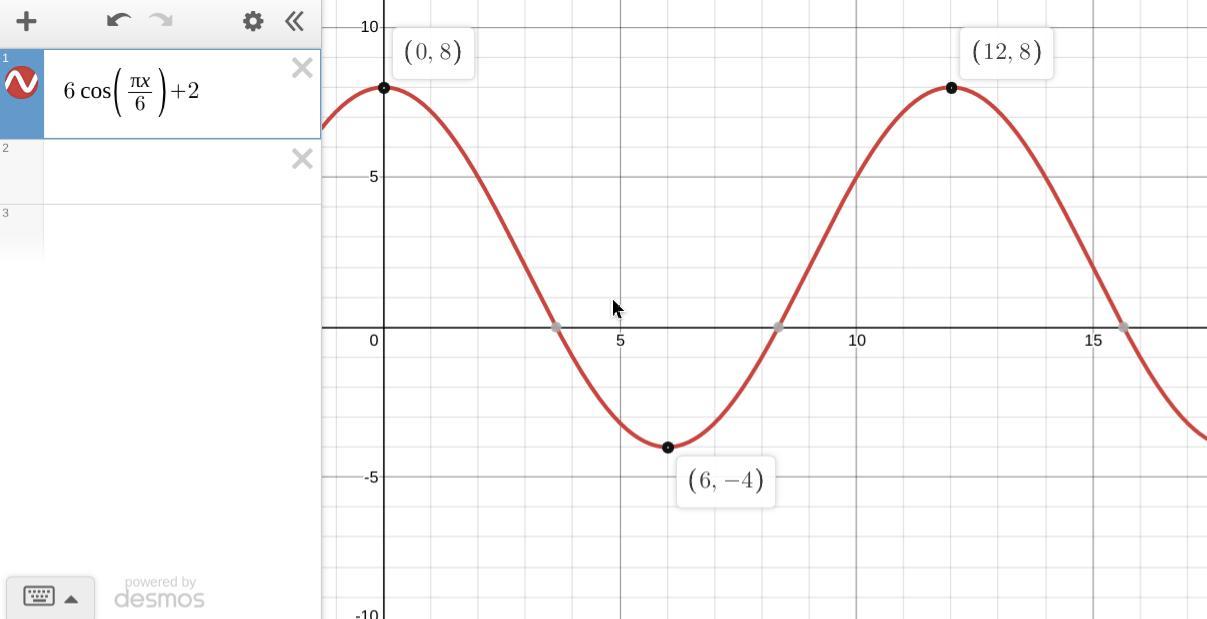

see attached
Step-by-step explanation:
The amplitude of the function is half the difference between the maximum and minimum:
A = (8 -(-4))/2 = 6
The multiplier of t is (2π)/period, so is ...
B = (2π)/12 = π/6
The vertical offset is the average of the minimum and the maximum:
D = (8 +(-4))/2 = 2
The peak is at t=0, so the cosine function is the appropriate choice.
__
Then the function is ...
f(t) = Acos(Bt) +D
f(t) = 6cos(πt/6) +2
