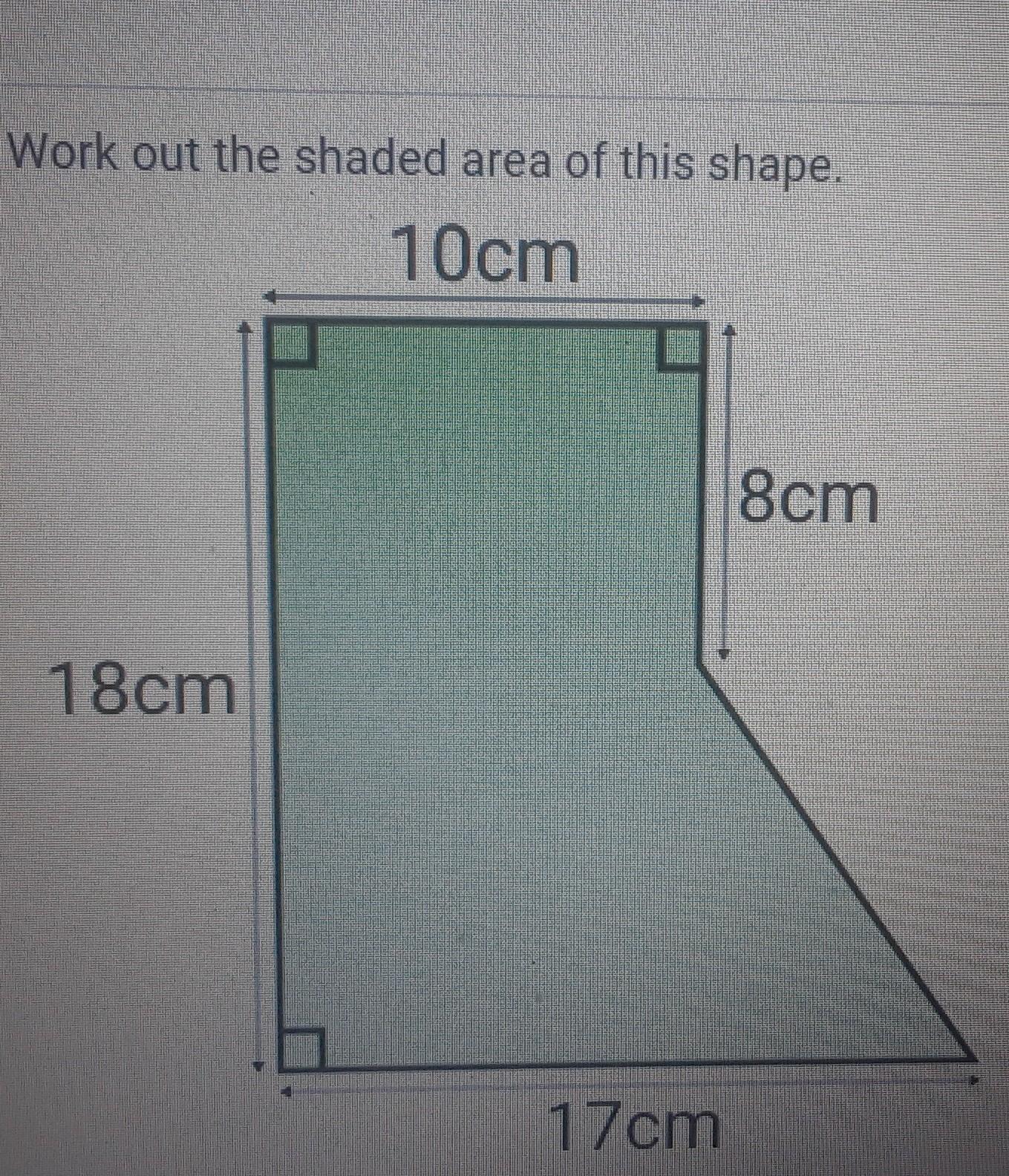

Question

Help me pls due in 5 mins​

Answer 1

Answer: $215\ cm^2$

Step-by-step explanation:

Given

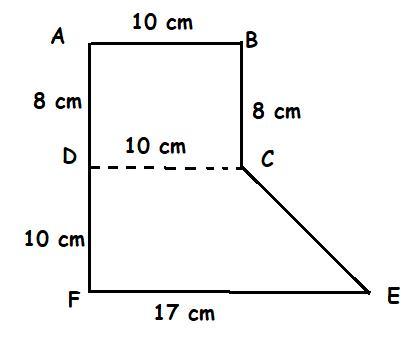

Here the given figure can be divided into two shapes i.e. rectangle and a trapezium

For rectangle ABCD Area = $10\times8=80\ cm^2$

Area of trapezium CEFD Area is $\frac{1}{2}[\text{sum of non-parallel sides}]\times[\text{distance between them}]$

$\Rightarrow \frac{1}{2}\times [10+17][10]=135\ cm^2$

Total shaded area $=80+135=215\ cm^2$
