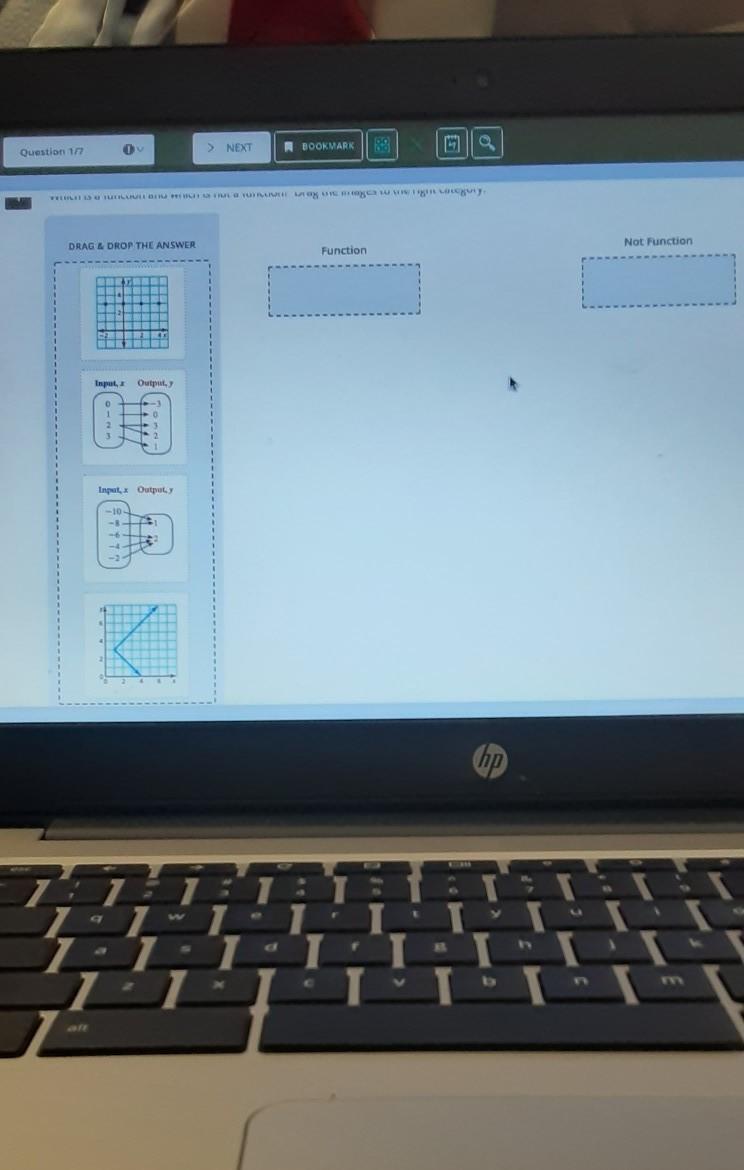

Which are functions and which are non functions

Mathematics

1 answer:

krek1111 [17]3 years ago

4 0

9514 1404 393

Answer:

functions: A, C; non-functions: B, D

Step-by-step explanation:

A relation is not a function if any input value (x) maps to more than one output value (y).

On a graph, we apply the "vertical line test." If any vertical line intersects two or more points on the graph, it is not a function. We say it fails the vertical line test. The bottom graph (D) fails the vertical line test, so is not a function.

On a mapping, such as figure B or C, any input (x-value) that is the source of two or more arrows means the relation is not a function. The map of B is not a function.

The other choices (A and C) show a functional relation.

You might be interested in

A ship leaves port at noon and has a bearing of S29oW. The ship sails at 20 knots. How many nautical miles south and how many na

ira [324]

Answer:

Approximately $58.2\; \text{nautical miles}$ (assuming that the bearing is ${\rm S$29^{\circ}$W}$ .)

Step-by-step explanation:

Let $v$ denote the speed of the ship, and let $t$ denote the duration of the trip. The magnitude of the displacement of this ship would be $v\, t$ .

Refer to the diagram attached. The direction ${\rm S$29^{\circ}$W}$ means $29^{\circ}$ west of south. Thus, start with the south direction and turn towards west (clockwise) by $29^{\circ}$ to find the direction of the displacement of the ship.

The hypothenuse of the right triangle in this diagram represents the displacement of the ship, with a length of $v\, t$ . The dashed horizontal line segment represents the distance that the ship has travelled to the west (which this question is asking for.) The angle opposite to that line segment is exactly $29^{\circ}$ .

Since the hypotenuse is of length $v\, t$ , the dashed line segment opposite to the $\theta = 29^{\circ}$ vertex would have a length of:

$\begin{aligned}& \text{opposite (to $\theta$)} \\ =\; & \text{hypotenuse} \times \frac{\text{opposite (to $\theta$)}}{\text{hypotenuse}} \\ =\; & \text{hypotenuse} \times \sin (\theta) \\ =\; & v\, t \, \sin(\theta) \\ =\; & v\, t\, \sin(29^{\circ})\end{aligned}$ .

Substitute in $\begin{aligned} v &= 20\; \frac{\text{nautical mile}}{\text{hour}}\end{aligned}$ and $t = 6\; \text{hour}$ :

$\begin{aligned} & v\, t\, \sin(29^{\circ}) \\ =\; & 20\; \frac{\text{nautical mile}}{\text{hour}} \times 6\; \text{hour} \times \sin(29^{\circ}) \\ \approx\; & 58.2\; \text{nautical mile}\end{aligned}$ .
