Varvara68 [4.7K]
3 years ago
13

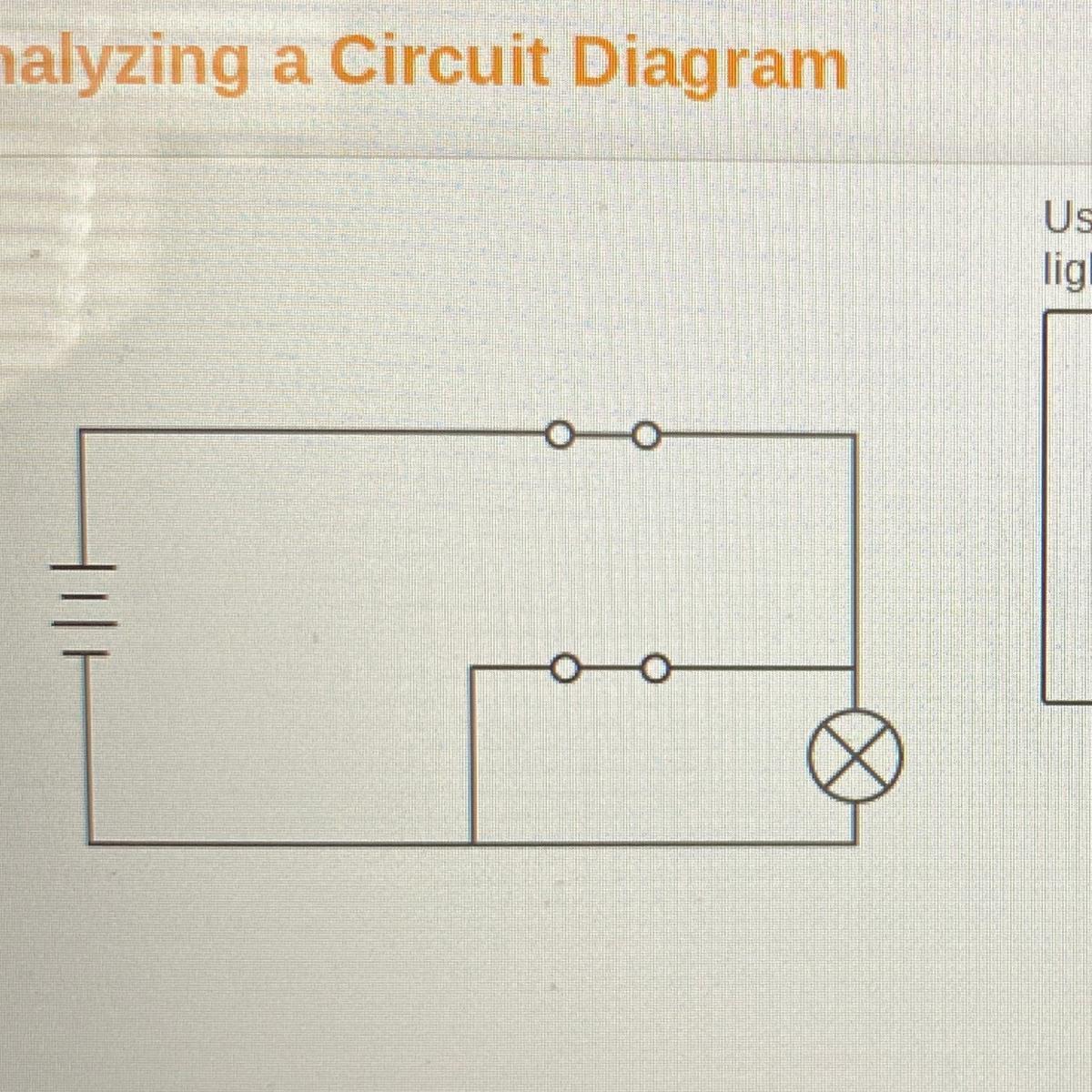

Use the circuit diagram to decide if the lightbulb will light. Justify your answer

Physics
2 answers:
ivanzaharov [21]3 years ago
6 0

Answer:

Sample Answer: The lightbulb will not light because this is a short circuit. The branch without the bulb has almost no resistance, so all the current will flow through that branch instead of flowing through the bulb.

elena-14-01-66 [18.8K]3 years ago
3 0

Answer:

It will.

Explanation:

For a circuit to function properly, everything has to be connected. As the diagram shows that everything is connected and there are no gaps, it will light.

You might be interested in
I WILL GIVE BRAINLIEST TO WHOEVER IS CORRECT.
Tems11 [23]
Ultraviolet light with a wavelength shorter than visible light and a higher radiant energy than visible light.

The shorter the wavelength, the higher the frequency and energy.
6 0
3 years ago
Read 2 more answers
Distinguish between linear momentum and angular momentum.
Katarina [22]

Linear momentum is in a straight line and depends on the objects mass and velocity.

Angular (rotational) momentum depends on the objects mass, velocity, and radius.

7 0
4 years ago
If a displacement vector has a negative x component and a positive y component,
bezimeni [28]

Answer:

The direction will be NE i.e North east.

Explanation:

From the question, it will be travelling in North east direction because the the negative X components in vector is in horizontal direction which is the Eastern direction when using the four cardinal points and the Y components, the positive is in North direction if you use the four cardinal points. Therefore, the vector with both X components and Y components will be travelling in Northeast direction.

8 0
3 years ago
The atomic number of magnesium is 12. This means that its nucleus must contain
nasty-shy [4]
12 protons in the nucleus
5 0
3 years ago
An electron enters a region between two large parallel plates made of aluminum separated by a distance of 2.0 cm and kept at a p
kotykmax [81]

Answer:

a)v=1.77\times 10^6\ m/s

b)v=3.872\times 10^6\ m/s

c)v=5.5\times 10^6\ m/s

d)v=6.7\times 10^6\ m/s

e)v=7.7\times 10^6\ m/s

Explanation:

Given that

d = 2 cm

V = 200 V

u=4\times 10^5\ m/s

We know that

F = E q

F = m a

E = V/d

So

m a =  q .V/d b

a=\dfrac{q.V}{m.d}                 ---------1

The mass of electron

m=9.1\times 10^{-31}\ kg

The charge on electron

q=1.6\times 10^{-19}\ C

Now by putting the all values in equation 1

a=\dfrac{1.6\times 10^{-19}\times 200}{9.1\times 10^{-31}\times 0.02}\ m/s^2

a=1.5\times 10^{15}\ m/s^2

We know that

v^2=u^2+2as

a)

s = 0.1 cm

v^2=(4\times 10^5)^2+2\times 1.5\times 10^{15}\times 0.1\times 10^{-2}

v=\sqrt{3.16\times 10^{12}}\ m/s

v=1.77\times 10^6\ m/s

b)

s = 0.5 cm

v^2=(4\times 10^5)^2+2\times 1.5\times 10^{15}\times 0.5\times 10^{-2}

v=\sqrt{1.5\times 10^{13}}\ m/s

v=3.872\times 10^6\ m/s

c)

s = 1 cm

v^2=(4\times 10^5)^2+2\times 1.5\times 10^{15}\times 1\times 10^{-2}

v=\sqrt{3.06\times 10^{13}}\ m/s

v=5.5\times 10^6\ m/s

d)

s = 1.5 cm

v^2=(4\times 10^5)^2+2\times 1.5\times 10^{15}\times 1.5\times 10^{-2}

v=\sqrt{4.5\times 10^{13}}\ m/s

v=6.7\times 10^6\ m/s

e)

s = 2 cm

v^2=(4\times 10^5)^2+2\times 1.5\times 10^{15}\times 2\times 10^{-2}

v=\sqrt{6.06\times 10^{13}}\ m/s

v=7.7\times 10^6\ m/s

5 0
4 years ago
Read 2 more answers
