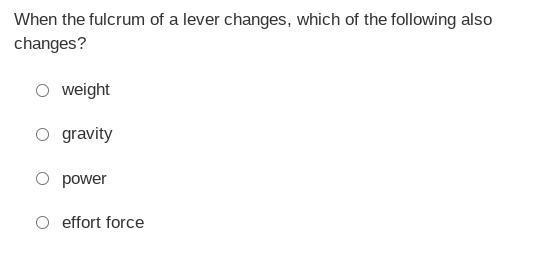

Please help me :))))) no links, and BRAINLIEST to CORRECT answers ONLY.

Physics

2 answers:

padilas [110]3 years ago

3 0

Answer:

D. Effort Force

Explanation:

crimeas [40]3 years ago

3 0

<h2>Answer:</h2>

<u>By changing the position of the fulcrum, the amount of effort Force also changes</u>

<h2>Explanation:</h2>

The mechanical advantage of a lever is changed when the distance between the pivot point (fulcrum) and the weight is changed. The way levers operate is by an effort applied at a point, which moves a load at another point through a balance point called the fulcrum. If the distance between the fulcrum and the effort is increased, the effort needed to lift a weight decreases proportionally.

You might be interested in

The heat caused by the friction of moving engine parts and the explosion of gasoline in the cylinders is removed through the veh

grin007 [14]

Answer:

True

Explanation:

Most vehicle's cooling system contain a coolant that flows through certain passages in the engine, as the coolant moves through those passages it absorb heat from moving engine parts and the explosion of gasoline in the cylinders. the coolant is then stored back in a radiator which is responsible for transferring the heat from the coolant to the environment(air).

5 0

3 years ago

Find the value of currents through each branch

Irina-Kira [14]

Answer:

the branch currents are as follows:

top left: I2 = 0.625 A

middle left: I1 = 2.500 A

bottom left: I1-I2 = 1.875 A

top center: I2+I3 = 2.500 A

bottom center: I2+I3-I1 = 0 A

right: I3 = 1.875 A

Explanation:

You can write the KVL equations:

Top left loop:

I2(4) +(I2 +I3)(2) +I1(1) = 10

Bottom left loop:

(I1-I2)(4) +(I1-I2-I3)(2) +I1(1) = 10

Right loop:

(I2+I3)(2) +(I2+I3-I1)(2) = 5

In matrix form, the equations are ...

$\left[\begin{array}{ccc}1&6&2\\7&-6&-2\\-2&4&4\end{array}\right]\cdot\left[\begin{array}{c}I_1\\I_2\\I_3\end{array}\right] =\left[\begin{array}{c}10\\10\\5\end{array}\right]$

These equations have the solution ...

$\left[\begin{array}{c}I_1\\I_2\\I_3\end{array}\right] =\left[\begin{array}{c}2.500\\0.625\\1.875\end{array}\right]$

This means the branch currents are as follows:

top left: I2 = 0.625 A

middle left: I1 = 2.500 A

bottom left: I1-I2 = 1.875 A

top center: I2+I3 = 2.500 A

bottom center: I2+I3-I1 = 0 A

right: I3 = 1.875 A

_____

This can be worked almost in your head by using the superposition theorem. When the 5V source is shorted, the 10V source is supplying (I1) to a circuit that is the 4 Ω and 2 Ω resistors in parallel with their counterparts, and that 2+1 Ω combination in series with 1 Ω for a total of a 4Ω load on the 10 V source. That is, I1 due to the 10V source is 2.5 A, and it is nominally split in half through the upper and lower branches of the circuit. There is no current flowing through the (shorted) 5 V source branch.

When the 10V source is shorted, the 5V source is supplying a 4 +4 Ω branch in parallel with a 2 +2 Ω branch, a total load of 8/3 Ω. This makes the current from that source (I3) be 5/(8/3) = 15/8 = 1.875 A. There is zero current from this source through the 1 Ω resistor.

Nominally, the current from the 5V source splits 2/3 through the 2 Ω branch and 1/3 through the 4 Ω branch.

Using superposition, I2 = I1/2 -I3/3 = (2.5 A/2) -(1/3)(15/8 A) = 0.625 A. This is the same answer as above, without any matrix math.

(I1, I2, I3) = (2.5 A, 0.625 A, 1.875 A)

It helps to be familiar with the formulas for resistors in series and parallel.

8 0

3 years ago

Does it take a longer or shorter wavelength for a wave to tranfer more energy?

butalik [34]

It takes a longer wavelength

8 0

4 years ago

Does someone know how to do math with that equation

mestny [16]

Answer:

f = 5 cm

Explanation:

using the thin lens equation, given as follows:

$\frac{1}{f} = \frac{1}{d_{o}}+\frac{1}{d_{i}}\\$

where,

f = focal length = ?

do = the distance of object from lens = 20 cm

di = the distance of image from lens = 6.6667 cm

Therefore,

$\frac{1}{f} = \frac{1}{20\ cm}+\frac{1}{6.6667\ cm}\\\\\frac{1}{f} = 0.199999\ cm^{-1}\\\\f = \frac{1}{0.199999\ cm^{-1}}\\\\$

8 0

3 years ago

A tennis player strikes a tennis ball from underneath with her racket. The ball is sent straight up with an initial velocity of

Stels [109]

So the acceleration of gravity is 9.8 m/s so that’s how quickly it will accelerate downwards. You can use a kinematic equation to determine your answer. We know that initial velocity was 19 m/s, final velocity must be 0 m/s because it’s at the very top, and the acceleration is -9.8 m/s. You can then use this equation:

Vf^2=Vo^2+2ax

Plugging in values:

361=19.6x

X=18 m

6 0
