Question

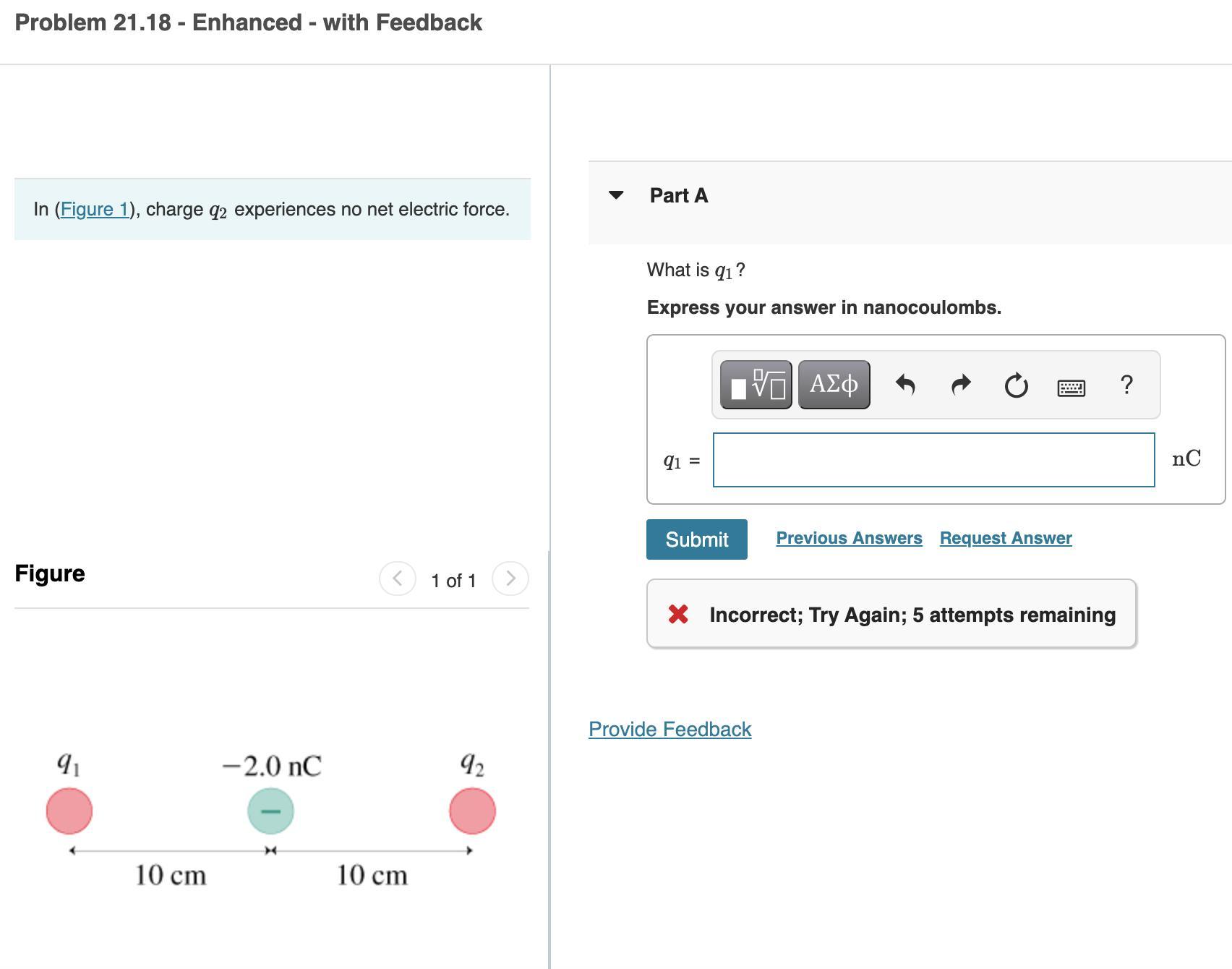

In figure 1, charge q2 experiences no net electric force. What is q1?

Answer 1

By using Coulomb's law, we want to find the value of q₁ given that q₂ experiences no net electric force. We will find that q₁ = 8nC

Working with Coulomb's law.

Coulomb's law says that for two charges q₁ and q₂ separated by a distance r, the force that each one experiences is:

$F = k\frac{q_1*q_2}{r^2}$

Where k is a constant

Here we can see that q₂ interacts with two charges, then the total force on q₂ will be:

$F = k\frac{q_1*q_2}{(20cm)^2} + k\frac{-2nC*q_2}{(10cm)^2}$

And we know that it must be equal to zero, so we can write it as:

$F = k\frac{q_1*q_2}{(20cm)^2} + k\frac{-2nC*q_2}{(10cm)^2} = 0\\\\k*q_2*(\frac{q_1}{(20cm)^2} + \frac{-2nC}{(10cm)^2}) = 0$

The parenthesis must be equal to zero, so we can write:

$\frac{q_1}{(20cm)^2} + \frac{-2nC}{(10cm)^2} = 0$

And now we can solve this for q₁ to get:

$q_1 = 2nC*(\frac{(20cm)^2}{(10cm)^2} ) = 8nC$
