Question

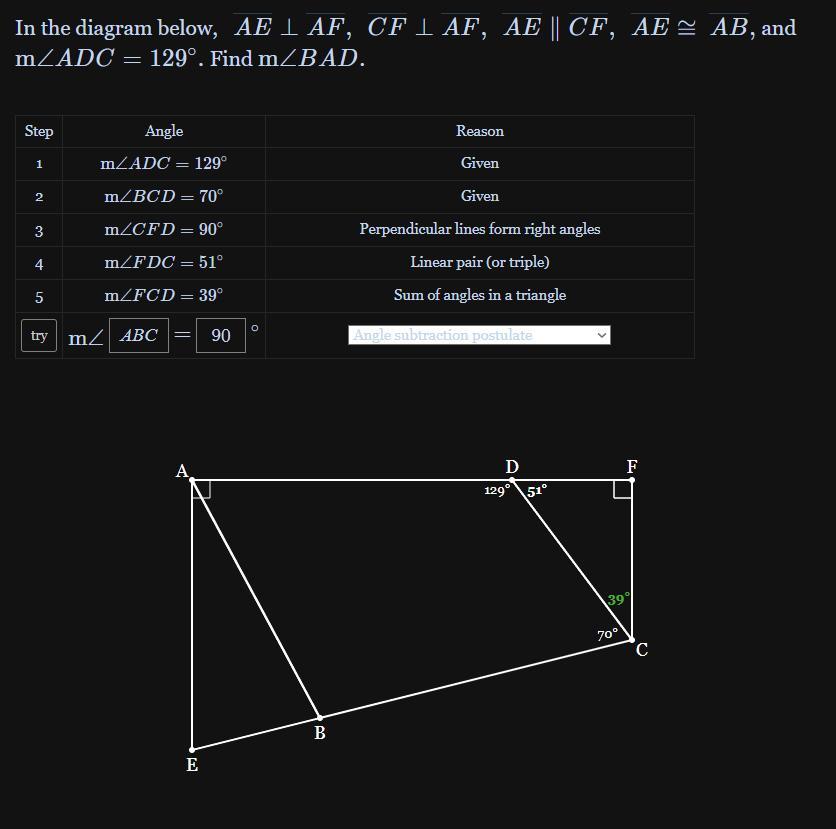

I need help with this, i did part of it but i'm desperate

Answer 1

Answer:

Let's add more steps.

step 6: angle AEB measures 360 - 90 -90 - 70 - 39 = 71° Reason, AECF is a quadrangonal and three of its angle measures 90, 90, and (70+39)

step 7: angles AEB and ABE are congruent: reason triangle ABE is isosceles since AE is conruent to AB

step 8 Angle BAE measures 180 -71-71 = 38°: by difference from the sum of the internal angles.

step 9: Angle BAD measures 90 - BAE = 90 - 38 = 52° Reason angles BAD and BAE are complementary.

QED
