Question

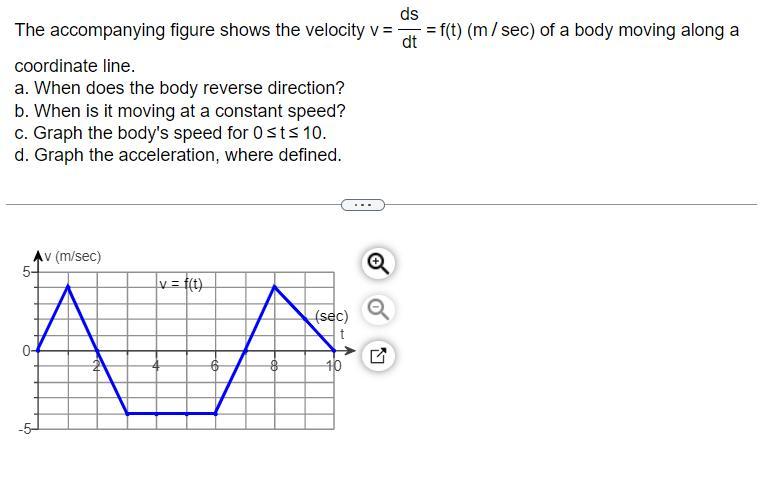

Could anyone help me solve this?

Answer 1

Step-by-step explanation:

The body reverses direction whenever we go from Positve velocity to negative velocity or vice versa.

So here it is (2,7) exclusive then (7,10) exclusive.

A constant speed means a slope of 0. Here it is (3,6).

c. Since speed is non negative, we would reflect any part of the velocity function that is below the time.axis about the time axis

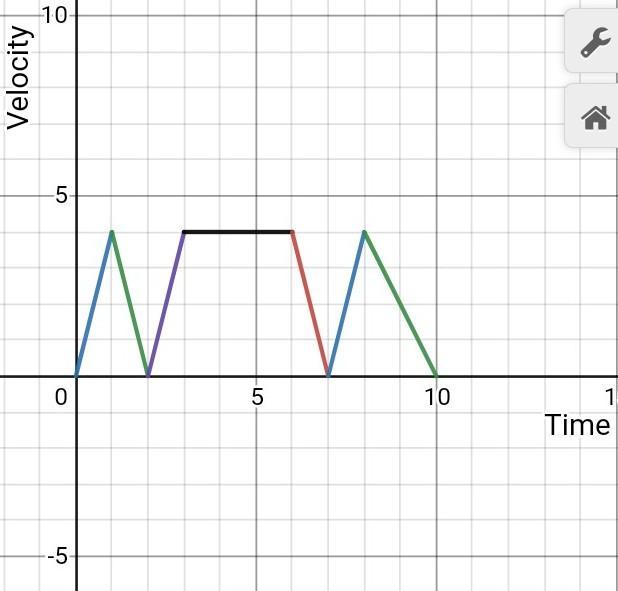

So we would get

Above is the function, don't worry bout the math part.

D. Knowing that acceleration is the derivative of velocity with respect to time, the derivative of any linear function is the slope of that linear function. So if we find the slope of different paths, we will get a constant and then we can graph it

We must use the original graph because acceleration is a vector meaning it can be negative.

We would get

the second graph is acceleration vs time
