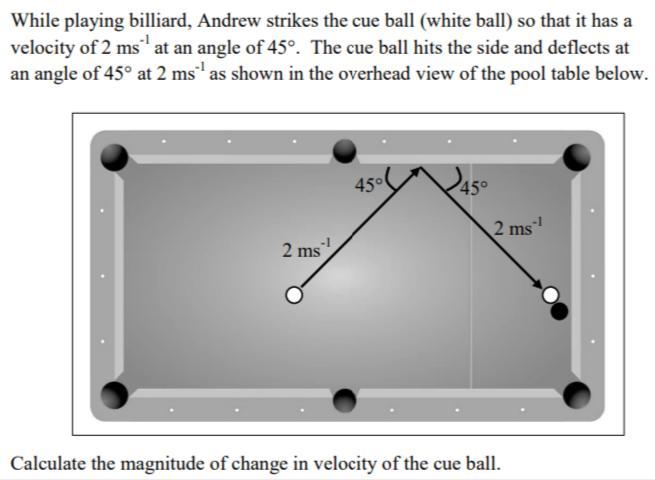

Refer to the image. Calculate the magnitude of change in velocity of the cue ball.

Physics

1 answer:

valkas [14]2 years ago

6 0

Answer:

If you add the 2 velocity vectors you get the velocity of the third vector which is the (change in) velocity of the cue ball after striking the cushion

V * 2 * cos 45 = 4 * cos 45 = 2.83 m/s

You might be interested in

A ball of radius r rolls on the inside of a track of radius R. If the ball starts from rest at the vertical edge of the track, f

meriva

Answer:

$v=\sqrt{\dfrac{10g(R-r)}{7}}$

Explanation:

Given that

Radius of track = R

Radius of ball = r

The ball can be treated as solid sphere, so

The moment of inertia of ball

$I=\dfrac{2}{5}mr^2$

When the ball reach at the lowest position then it will have both angular and linear speed.

Condition for rolling without slipping v= ωr

Form energy conservation

$mgR=mgr+\dfrac{1}{2}mv^2+\dfrac{1}{2}I\omega^2$

v= ωr

$I=\dfrac{2}{5}mr^2$

$mgR=mgr+\dfrac{1}{2}mv^2+\dfrac{1}{2}\times \dfrac{2}{5}mr^2\omega^2$

$mg(R-r)=\dfrac{1}{2}mv^2+\dfrac{1}{2}\times \dfrac{2}{5}mv^2$

$2mg(R-r)=mv^2+\dfrac{2}{5}mv^2$

$2g(R-r)=\dfrac{7}{5}v^2$

$v=\sqrt{\dfrac{10g(R-r)}{7}}$

3 0

3 years ago

You travel at a speed of 24 m/s. How much time will it take you to travel 127m (round to two decimal places if needed)

shtirl [24]

Answer: 5.29 seconds

Explanation:

if the speed is 24 meters per second than it would take you 5.29 seconds or 127meters/24m/s to get 5.29s

4 0

3 years ago

A boy whirls a stone with uniform speed in a horizontal circle of radius 2 m and at height 2 m above the ground. The string brea

svp [43]

Answer:

Explanation:

162.7 m/s²

8 0

3 years ago

A body moving with a velocity of 20 m/s begins to accelerate at 3 m/s2. How far does the body move in 5 seconds?

igor_vitrenko [27]

The answer is A

I hope that helped

4 0

3 years ago

Read 2 more answers

Destiny is eating lunch at her favorite cafe when her friend Jada calls and says she wants to meet her. Jada is calling from a c

NeTakaya

Answer:

Explanation:

Let time taken by Jada in driving be t hour .

distance travelled by jada = 55 t

a )

Time of drive by destiny = t - 10 min

= t - .167 hour

distance of travel by destiny = 70 ( t - .167 )

Total distance = 45 miles

55 t + 70 ( t - .167 ) = 45

55t + 70 t - 11.69 = 45

125 t = 56.69

t = .453 hour = 27.21 minutes

b )

distance travelled by Destiny = 70 ( t - .167 )

70 ( .453 - .167 )

= 20.02 miles .

5 0
