The numerical value of x in the figure is 10.
<h3>What is the numerical value of x?</h3>
Sum of angles on a straight line equal 180 degrees.
Sum of interior angles of a triangle equals 180 degrees.

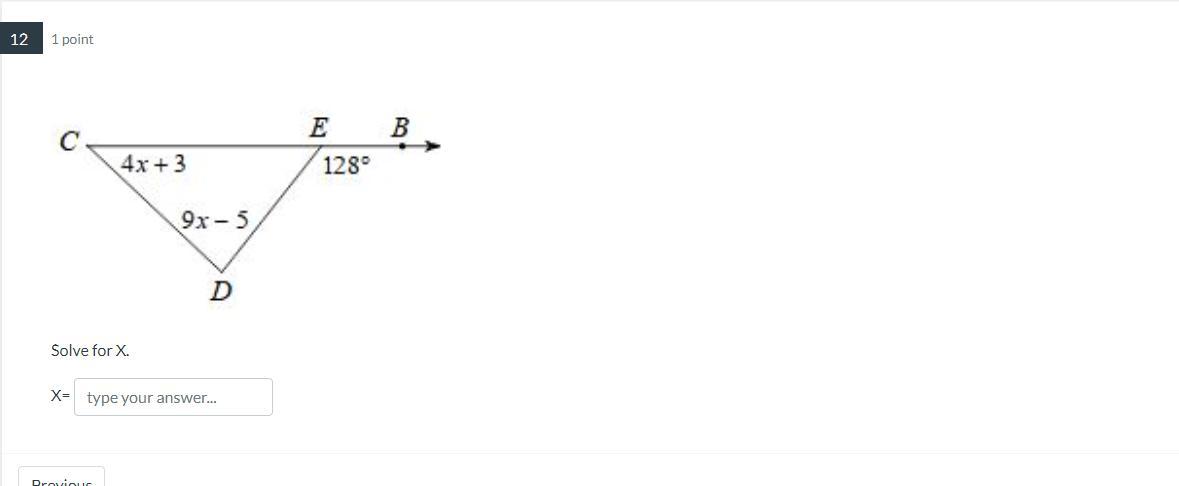

From the diagram, to determine the value of x, we need to find the third angle ∠CED.
Since the sum of angles on a straight line equal 180 degrees
∠CED + ∠BED = 180
∠CED + 128 = 180
∠CED = 180 - 128
∠CED = 52°
Also, sum of interior angles of a triangle equals 180 degrees.
Hence,
(4x + 3) + ( 9x - 5 ) + ∠CED = 180
(4x + 3) + ( 9x - 5 ) + 52 = 180
4x + 3 + 9x - 5 + 52 = 180
13x + 50 = 180
13x = 180 - 50
13x = 130
x = 130/13
x = 10
Therefore, the numerical value of x in the figure is 10.
