Question

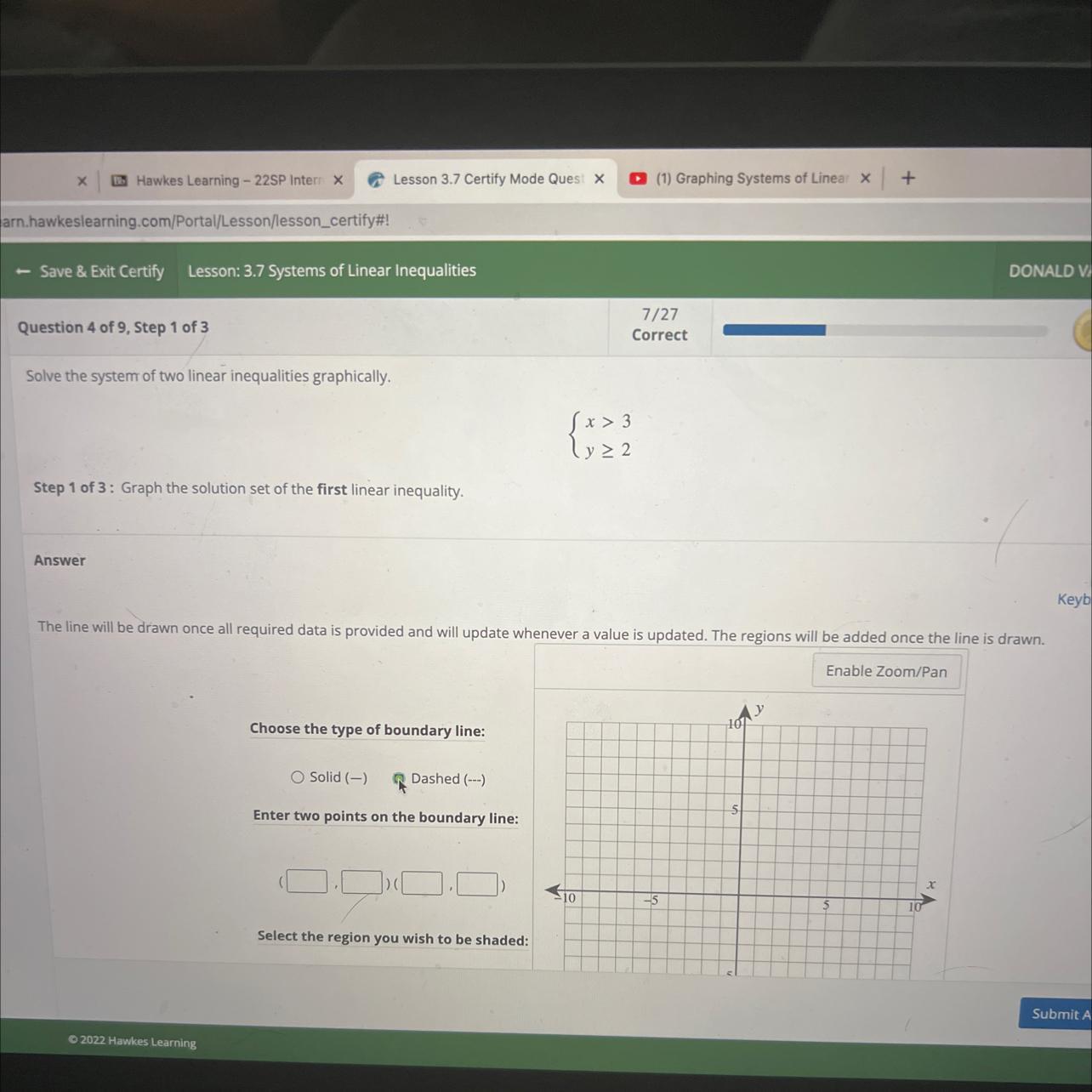

Solve the system of two linear inequalities graphically,* > 3Vy22Step 1 of 3 : Graph the solution set of the first linear inequalityAnswerThe line will be drawn once all required data is provided and will update whenever a value is updated. The regions will be added once the line is drawEnable Zoom/PanChoose the type of boundary line:Solld (-) DashedEnter two points on the boundary line:10-Select the region you wish to be shaded:

Answer 1

ANSWER

EXPLANATION

To graph this system of inequalities, we have to graph each inequality on the same coordinate plane.

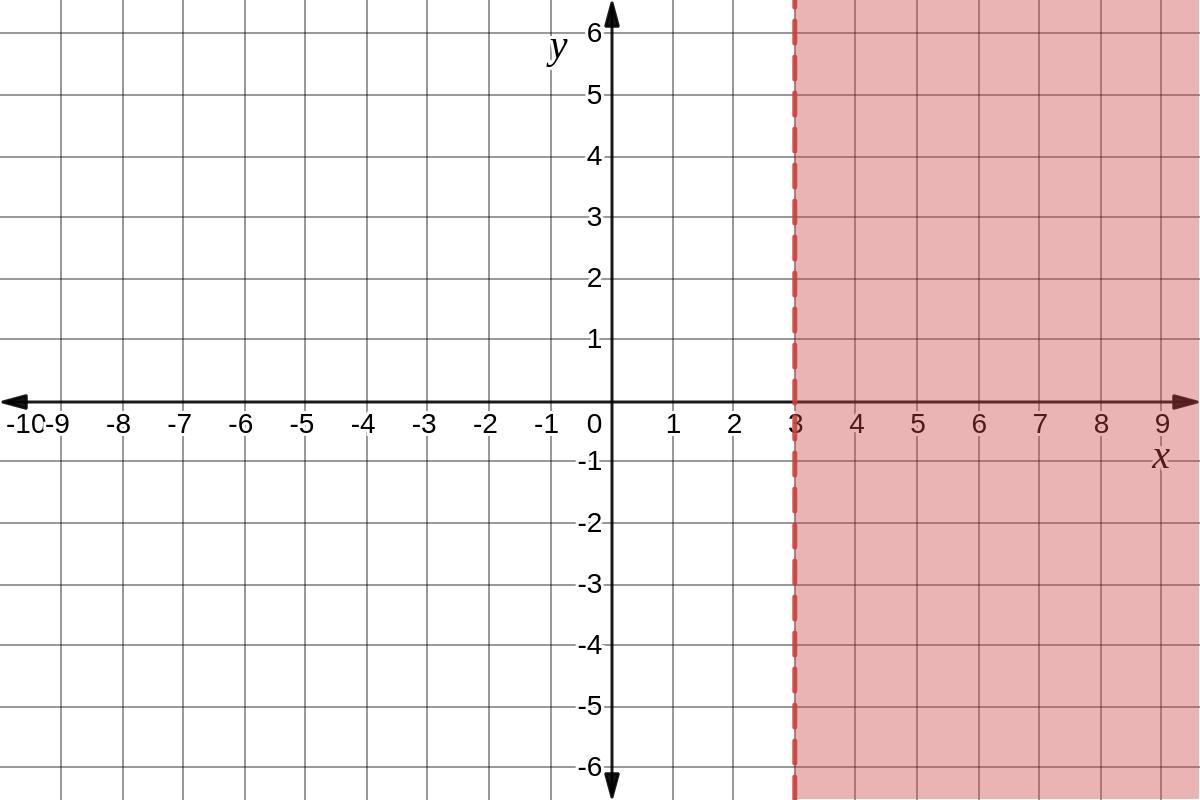

The first inequality is x > 3. To graph it, we have to draw a vertical dashed line passing through x = 3. Then, since x is greater than 3, we have to shade the area to the right of this line,

Two points on this line are (3, 1) and (3, -1). Any point whose x-coordinate is 3 will work.

The second inequality is y ≥ 2. To graph it, we have to draw a horizontal continuous line passing through y = 2. Then, since y is greater than or equal to 2, we have to shade the area above the line.

Two points on this line are (-1, 2) and (1, 2). Any point whose y-coordinate is 2 will work.
