A simply supported beam ( 1 E 5 2 GPa) carries a uniformly distributed load q 5 125 N/m, and a point load P 5 200 N at mid-span.

The beam has a rectangular cross section (b 5 75 mm, h 5 200 mm) and a length of 3.6 m. Calculate the maximum deflection of the beam.

1 answer:

soldi70 [24.7K]3 years ago

3 0

Answer:

The overall deflection = 0.077gbmm

Q=0

Explanation:

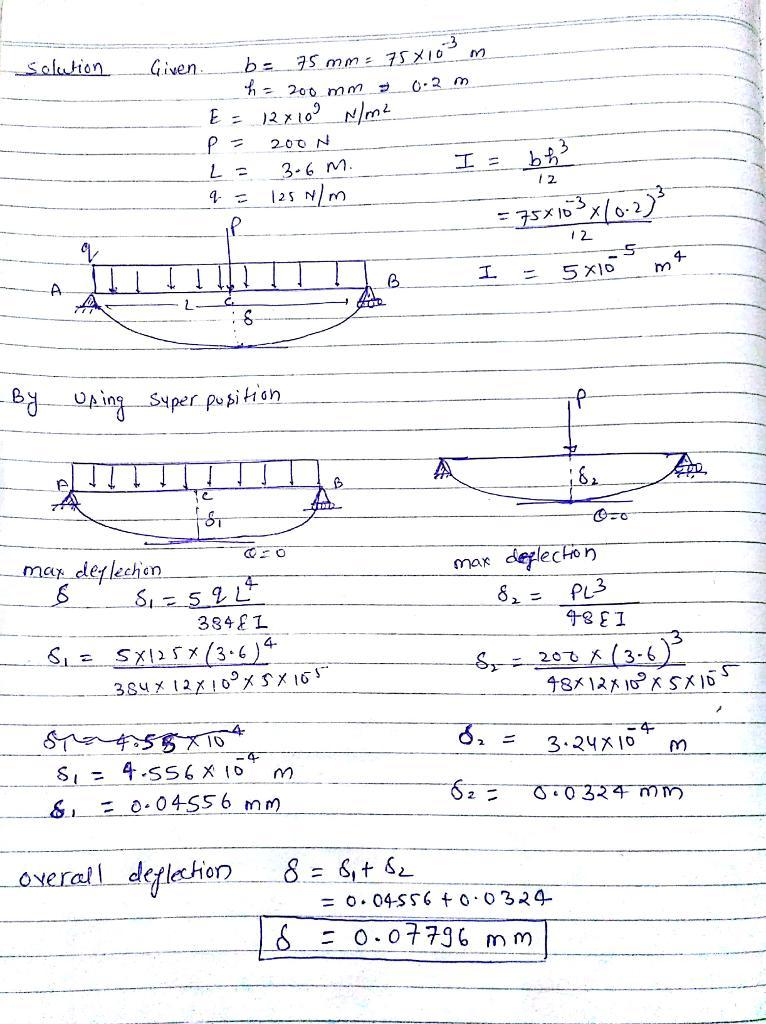

To solve this, I had to put the figures you gave into drawings for better understanding and to create a better picture of things.

Kindly go through the attached files for a step by step explanation of how I arrived at the answer.

You might be interested in

Compare a series circuit powered by six 1.5-volt batteries to a series circuit powered by a single 9-volt battery. Make sure the

lana [24]

Answer:

Both series circuits provide a total voltage of 9 volts to the two bulbs connected in series and the voltage will be equally divided among two bulbs and they will have same brightness. Therefore, both circuits will have same characteristics.

Explanation:

We are asked to compare two series circuits having equal number of light bulbs.

1st circuit is powered by 6 batteries each having a voltage of 1.5V

2nd circuit is powered by a single battery having a voltage of 9V.

The six batteries in the 1st circuit can be connected together in series or in parallel.

When the batteries are connected in series (positive terminal of one battery connected to negative terminal of another battery) their voltage gets added which means

Voltage of pack = number of batteries*voltage of each battery

Voltage of pack = 6*1.5

Voltage of pack = 9 volts

But the current remains same in the series connection since there is only path for the current to flow.

On the other hand, when the batteries are connected in parallel, the voltage remains same but the current increases.

Circuit 1:

In this circuit, we have 6 batteries each of 1.5 volts connected in series to provide a voltage of 9 volts.

We have connected 2 bulbs in this series circuit.

The voltage will be equally divided between two bulbs if both bulbs are identical in construction.

So there will be 4.5 volts across each bulb and both bulbs will have same brightness.

Circuit 2:

In this circuit, we have 1 battery which provide a voltage of 9 volts.

We have connected 2 bulbs in this series circuit just like in circuit 1.

The voltage will be equally divided between two bulbs if both bulbs are identical in construction.

So there will be 4.5 volts across each bulb and both bulbs will have same brightness.

Conclusion:

Both series circuits provide a total voltage of 9 volts to the two bulbs connected in series and the voltage will be equally divided among two bulbs and they will have same brightness. Therefore, both circuits will have same characteristics.

3 0

3 years ago

A piston-cylinder apparatus has a piston of mass 2kg and diameterof

iragen [17]

Answer:

M =2.33 kg

Explanation:

given data:

mass of piston - 2kg

diameter of piston is 10 cm

height of water 30 cm

atmospheric pressure 101 kPa

water temperature = 50°C

Density of water at 50 degree celcius is 988kg/m^3

volume of cylinder is $V = A \times h$

$= \pi r^2 \times h$

$= \pi 0.05^2\times 0.3$

mass of available in the given container is

$M = V\times d$

$= volume \times density$

$= \pi 0.05^2\times 0.3 \times 988$

M =2.33 kg

6 0

4 years ago

A manometer containing a fluid with a density of 60 lbm/ft3 is attached to a tank filled with air. If the gage pressure of the a

8090 [49]

Answer:

The fluid level difference in the manometer arm = 22.56 ft.

Explanation:

Assumption: The fluid in the manometer is incompressible, that is, its density is constant.

The fluid level difference between the two arms of the manometer gives the gage pressure of the air in the tank.

And P(gage) = ρgh

ρ = density of the manometer fluid = 60 lbm/ft³

g = acceleration due to gravity = 32.2 ft/s²

ρg = 60 × 32.2 = 1932 lbm/ft²s²

ρg = 1932 lbm/ft²s² × 1lbf.s²/32.2lbm.ft = 60 lbf/ft³

h = fluid level difference between the two arms of the manometer = ?

P(gage) = 9.4 psig = 9.4 × 144 = 1353.6 lbf/ft²

1353.6 = ρg × h = 60 lbf/ft³ × h

h = 1353.6/60 = 22.56 ft

A diagrammatic representation of this setup is presented in the attached image.

Hope this helps!

5 0

4 years ago

What are the disadvantages of having a liquid cooled engine?

Feliz [49]

One notable disadvantage of liquid cooling over air cooling is that it is considerably costly to set up. Cooling fans are prevalent in the market, and this overabundance of supply means they are cheap. The components of a liquid cooling system can be expensive.

5 0

3 years ago

Three tool materials (high-speed steel, cemented carbide, and ceramic) are to be compared for the same turning operation on a ba

Tpy6a [65]

Answer:

Among all three tools, the ceramic tool is taking the least time for the production of a batch, however, machining from the HSS tool is taking the highest time.

Explanation:

The optimum cutting speed for the minimum cost

$V_{opt}= \frac{C}{\left[\left(T_c+\frac{C_e}{C_m}\right)\left(\frac{1}{n}-1\right)\right]^n}\;\cdots(i)$

Where,

C,n = Taylor equation parameters

$T_h$ =Tool changing time in minutes

$C_e$ =Cost per grinding per edge

$C_m$ = Machine and operator cost per minute

On comparing with the Taylor equation $VT^n=C$ ,

Tool life,

$T= \left[ \left(T_t+\frac{C_e}{C_m}\right)\left(\frac{1}{n}-1\right)\right]}\;\cdots(ii)$

Given that,

Cost of operator and machine time $=\$40/hr=\$0.667/min$

Batch setting time = 2 hr

Part handling time: $T_h=2.5$ min

Part diameter: $D=73 mm$ $=73\times 10^{-3} m$

Part length: $l=250 mm=250\times 10^{-3} m$

Feed: $f=0.30 mm/rev= 0.3\times 10^{-3} m/rev$

Depth of cut: $d=3.5 mm$

For the HSS tool:

Tool cost is $20 and it can be ground and reground 15 times and the grinding= $2/grind.

So, $C_e=$ $\$20/15+2=\$3.33/edge$

Tool changing time, $T_t=3$ min.

$C= 80 m/min$

$n=0.130$

(a) From equation (i), cutting speed for the minimum cost:

$V_{opt}= \frac {80}{\left[ \left(3+\frac{3.33}{0.667}\right)\left(\frac{1}{0.13}-1\right)\right]^{0.13}}$

$\Rightarrow 47.7$ m/min

(b) From equation (ii), the tool life,

$T=\left(3+\frac{3.33}{0.667}\right)\left(\frac{1}{0.13}-1\right)\right]}$

$\Rightarrow T=53.4$ min

(c) Cycle time: $T_c=T_h+T_m+\frac{T_t}{n_p}$

where,

$T_m=$ Machining time for one part

$n_p=$ Number of pieces cut in one tool life

$T_m= \frac{l}{fN}$ min, where $N=\frac{V_{opt}}{\pi D}$ is the rpm of the spindle.

$\Rightarrow T_m= \frac{\pi D l}{fV_{opt}}$

$\Rightarrow T_m=\frac{\pi \times 73 \times 250\times 10^{-6}}{0.3\times 10^{-3}\times 47.7}=4.01 min/pc$

So, the number of parts produced in one tool life

$n_p=\frac {T}{T_m}$

$\Rightarrow n_p=\frac {53.4}{4.01}=13.3$

Round it to the lower integer

$\Rightarrow n_p=13$

So, the cycle time

$T_c=2.5+4.01+\frac{3}{13}=6.74$ min/pc

(d) Cost per production unit:

$C_c= C_mT_c+\frac{C_e}{n_p}$

$\Rightarrow C_c=0.667\times6.74+\frac{3.33}{13}=\$4.75/pc$

(e) Total time to complete the batch= Sum of setup time and production time for one batch

$=2\times60+ {50\times 6.74}{50}=457 min=7.62 hr$ .

(f) The proportion of time spent actually cutting metal

$=\frac{50\times4.01}{457}=0.4387=43.87\%$

Now, for the cemented carbide tool:

Cost per edge,

$C_e=$ $\$8/6=\$1.33/edge$

Tool changing time, $T_t=1min$

$C= 650 m/min$

$n=0.30$

(a) Cutting speed for the minimum cost:

$V_{opt}= \frac {650}{\left[ \left(1+\frac{1.33}{0.667}\right)\left(\frac{1}{0.3}-1\right)\right]^{0.3}}=363m/min$ [from(i)]

(b) Tool life,

$T=\left[ \left(1+\frac{1.33}{0.667}\right)\left(\frac{1}{0.3}-1\right)\right]=7min$ [from(ii)]

(c) Cycle time:

$T_c=T_h+T_m+\frac{T_t}{n_p}$

$T_m= \frac{\pi D l}{fV_{opt}}$

$\Rightarrow T_m=\frac{\pi \times 73 \times 250\times 10^{-6}}{0.3\times 10^{-3}\times 363}=0.53min/pc$

$n_p=\frac {7}{0.53}=13.2$

$\Rightarrow n_p=13$ [ nearest lower integer]

So, the cycle time

$T_c=2.5+0.53+\frac{1}{13}=3.11 min/pc$

(d) Cost per production unit:

$C_c= C_mT_c+\frac{C_e}{n_p}$

$\Rightarrow C_c=0.667\times3.11+\frac{1.33}{13}=\$2.18/pc$

(e) Total time to complete the batch $=2\times60+ {50\times 3.11}{50}=275.5 min=4.59 hr$ .

(f) The proportion of time spent actually cutting metal

$=\frac{50\times0.53}{275.5}=0.0962=9.62\%$

Similarly, for the ceramic tool:

$C_e=$ $\$10/6=\$1.67/edge$

$T_t-1min$

$C= 3500 m/min$

$n=0.6$

(a) Cutting speed:

$V_{opt}= \frac {3500}{\left[ \left(1+\frac{1.67}{0.667}\right)\left(\frac{1}{0.6}-1\right)\right]^{0.6}}$

$\Rightarrow V_{opt}=2105 m/min$

(b) Tool life,

$T=\left[ \left(1+\frac{1.67}{0.667}\right)\left(\frac{1}{0.6}-1\right)\right]=2.33 min$

(c) Cycle time:

$T_c=T_h+T_m+\frac{T_t}{n_p}$

$\Rightarrow T_m=\frac{\pi \times 73 \times 250\times 10^{-6}}{0.3\times 10^{-3}\times 2105}=0.091 min/pc$

$n_p=\frac {2.33}{0.091}=25.6$

$\Rightarrow n_p=25 pc/tool\; life$

So,

$T_c=2.5+0.091+\frac{1}{25}=2.63 min/pc$

(d) Cost per production unit:

$C_c= C_mT_c+\frac{C_e}{n_p}$

$\Rightarrow C_c=0.667\times2.63+\frac{1.67}{25}=$1.82/pc$

(e) Total time to complete the batch

$=2\times60+ {50\times 2.63}=251.5 min=4.19 hr$ .

(f) The proportion of time spent actually cutting metal

$=\frac{50\times0.091}{251.5}=0.0181=1.81\%$

3 0
