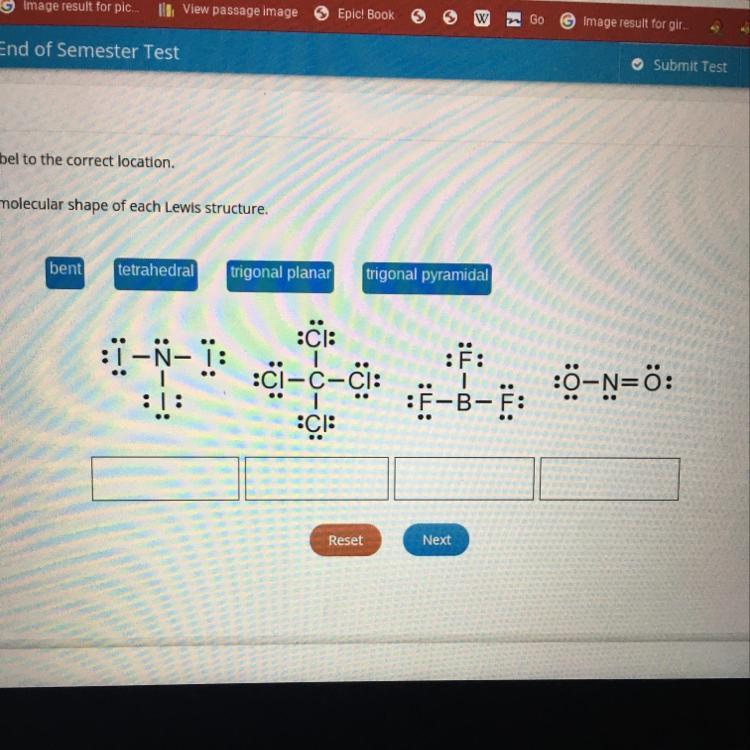

Drag each label to the correct location.

Chemistry

1 answer:

lions [1.4K]4 years ago

4 0

Answer:

1. Trigonal pyramidal

2. Tetrahedral

3. Trigonal planar

4. Bent

Hope this helps!

You might be interested in

How is a chemical change different from a physical change?

DaniilM [7]

A physical change in a substance doesn't change what the substance is. In a chemical change where there is a chemical reaction, a new substance is formed and energy is either given off or absorbed.

6 0

4 years ago

A saturated solution can become supersaturated under which of the following conditions

Kaylis [27]

the answer is d. when more solute is added

5 0

3 years ago

Given the following information, what is the concentration of H2O(g) at equilibrium? [H2S](eq) = 0.671 M [O2](eq) = 0.587 M Kc =

MAVERICK [17]

Answer: The equilibrium concentration of water is 0.597 M

Explanation:

Equilibrium constant in terms of concentration is defined as the ratio of concentration of products to the concentration of reactants each raised to the power their stoichiometric ratios. It is expressed as $K_{c}$

For a general chemical reaction:

$aA+bB\rightleftharpoons cC+dD$

The expression for $K_{eq}$ is written as:

$K_{c}=\frac{[C]^c[D]^d}{[A]^a[B]^b}$

The concentration of pure solids and pure liquids are taken as 1 in the expression.

For the given chemical reaction:

$2H_2S(g)+O_2(g)\rightleftharpoons 2S(s)+2H_2O(g)$

The expression of $K_c$ for above equation is:

$K_c=\frac{[H_2O]^2}{[H_2S]^2\times [O_2]}$

We are given:

$[H_2S]_{eq}=0.671M$

$[O_2]_{eq}=0.587M$

$K_c=1.35$

Putting values in above expression, we get:

$1.35=\frac{[H_2O]^2}{(0.671)^2\times 0.587}$

$[H_2O]=\sqrt{(1.35\times 0.671\times 0.671\times 0.587)}=0.597M$

Hence, the equilibrium concentration of water is 0.597 M

8 0

4 years ago

According to the VSEPR theory, which of the following factors determines the shape of a

Gala2k [10]

Answer:

B only

Explanation:

Using the VSEPR principle, the electron bond pairs and the lone pairs on the middle atom help us predict the structure of the molecule. The shape of a molecule is determined by the position of the nucleus and its electrons. The electrons and the nucleus settle in positions that minimize repulsion and maximize attraction.

4 0

3 years ago

If you stay at 90 degrees Celsius and a gas in a liquid solution has a pressure of 2 atm, what solubility should it have if it h

grigory [225]

Answer:

im not sure

Explanation:
