Given a 7 segment display, Develop the reduced circuit functions to drive segments a & d.

Engineering

1 answer:

Kipish [7]3 years ago

5 0

Answer:

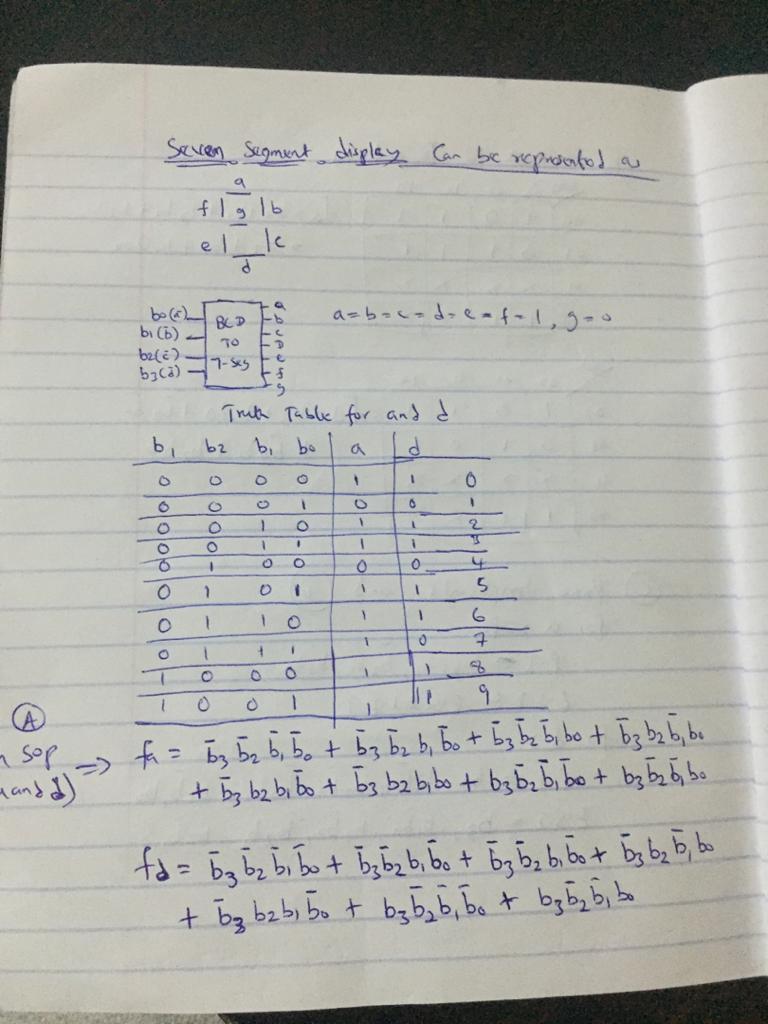

attached below is the detailed solution

Explanation:

Attached below is a detailed solution a BCD decoder( 4 inputs and 7 outputs ) used to drive a seven digit display

Prime Implicants are gotten from the maximum adjacent cells found in the K -map WHILE essential prime implicants ( ESI ) are prime implicants that combine with a minimum of one term which cannot be covered by another prime implicant.

D)For a : essential implicants includes all its implicants

For d : essential implicants includes all its prime implicants
