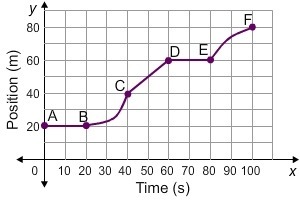

Which segment of this graph shows a decreasing velocity?

Physics

2 answers:

ch4aika [34]3 years ago

6 0

The segment of this graph that shows a decreasing velocity is the EF segment. AB and DE segments show that whatever was moving, in these segments was stopped. The segment BC shows an increase in velocity - the metres travelled were always more as the time went by. The segment CD shows that the velocity was constant during this period as the metres travelled were always constant as the time went by. EF is the segment that shows a decrease in velocity - at a certain point, the metres travelled started to be less for the same period of time - for example, from 80 to 90 secs, about 15 were travelled, while for the same amount of time, from 90 to 100 secs, only about 5 metres were travelled.

dalvyx [7]3 years ago

4 0

E and F is the correct answer

You might be interested in

During heavy rain, a section of a mountainside measuring 2.3 km horizontally (perpendicular to the slope), 0.75 km up along the

Jobisdone [24]

Answer:

93328 kg

Explanation:

$\rho$ = Density of mud = 1900 kg/m³

Volume of the cuboid is given by

$V=2300\times 750\times 1.4\\\Rightarrow V=2415000\ m^3$

Volume is also given by

$V=Al\\\Rightarrow l=\dfrac{V}{A}\\\Rightarrow l=\dfrac{2415000}{520\times 520}\\\Rightarrow l=8.9312\ m$

The length of the cuboid is 0.89312 m

For the small volume

$V_a=al\\\Rightarrow V_a=5.5\times 8.9312\\\Rightarrow V_a=49.12\ m^3$

Mass is given by

$m=\rho V_a\\\Rightarrow m=1900\times 49.12\\\Rightarrow m=93328\ kg$

The mass of the mud is 93328 kg

6 0

3 years ago

As a result of mitosis, the cels of a Molecular organism sure which of these properties select to correct answers. A. All cells

KATRIN_1 [288]

Answer:

C. All cells have identical genetic information.

4 0

3 years ago

Read 2 more answers

Explain how your battery works. (You may want to look at the Electric Current lesson) What are some possible materials you could

Lisa [10]

Answer:

A battery is made up of three parts. The Cathode (positive end +) , the Anode (negative end -) and the electrolyte. The electrolyte allows electrical charges to travel between the cathode and anode. This chemical reactions creates the flow of electricity supplying the electrical voltage potential to power a circuit.

Typical materials of a battery are as follows

- Anode most often is made of zinc

- Manganese dioxide acting as Cathode.

- the electrolyte between and inside contains ions

Explanation:

6 0

3 years ago

Which of the following climates is most suited for physical weathering?

NemiM [27]

The most suitable answer would be [D] Cool because that is the most common weather to pursue physical weathering.

<em>Hope this helped! :)</em>

3 0

4 years ago

Read 2 more answers

A wheel rotating with a constant angular acceleration turns through 19 revolutions during a 3 s time interval. Its angular veloc

Elanso [62]

Answer:

- 14.5 rad/s^2

Explanation:

n = 19

θ = 2 x 3.14 x 19 = 119.32 rad

t = 3 s, ω = 18 rad /s , ω0 = ?,

Let α be the angular acceleration.

Use First equation of motion for rotational motion

ω = ω0 + α t

18 = ω0 + α x 3

ω0 = 18 - 3α .....(1)

Use second equation of motion for rotational motion

θ = ω0 t + 1/2 x α x t^2

Put the value of ω0 = 18 - 3α from equation (1)

119.32 = (18 - 3α) x 3 + 1/2 x α x 9

119.32 - 54 = - 4.5 α

α = - 14.5 rad/s^2

6 0

4 years ago
