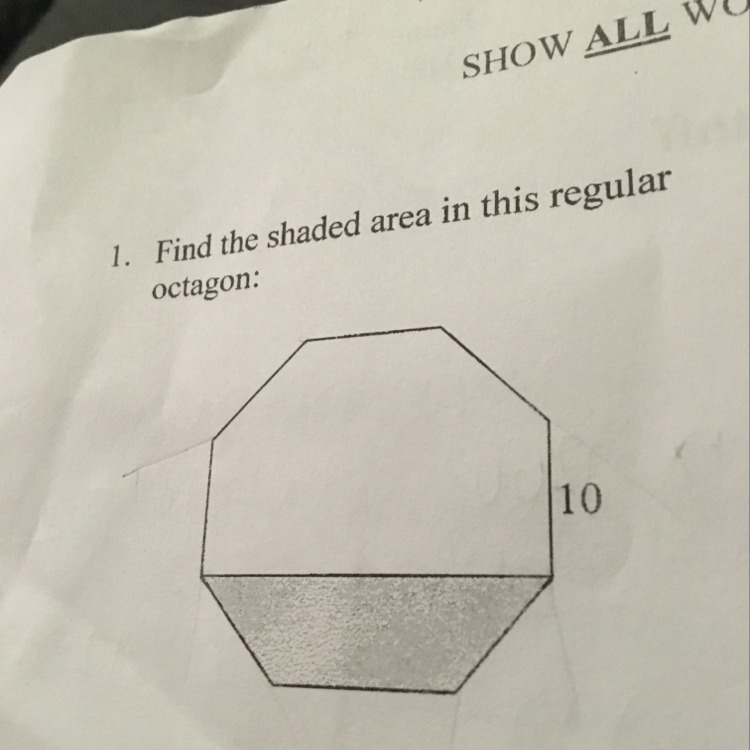

Find the shaded area in the octagon
1 answer:
See attached graphic.
Triangle ABC is a 45 45 90 triangle.
Side AB = Side BC = hypotenuse * (1 / sq root (2) )
SIde AB = BC = 10 * <span> <span> <span> 0.7071067812 </span> </span> </span>
SIde AB = BC = <span>7.071067812
Area of Triangle ABC = (AB * BC) / 2</span><span>
Area of Triangle ABC = 25
</span><span>Area of Triangle DEF = 25
Line FB = 10
Line FD = </span><span>7.071067812
Area of Rectangle FBDA = </span><span>70.71067812
Total Area of Shaded Area = 25 + 25 + </span><span>70.71067812 =
120.</span><span>71067812
</span>
Triangle ABC is a 45 45 90 triangle.
Side AB = Side BC = hypotenuse * (1 / sq root (2) )
SIde AB = BC = 10 * <span> <span> <span> 0.7071067812 </span> </span> </span>
SIde AB = BC = <span>7.071067812
Area of Triangle ABC = (AB * BC) / 2</span><span>
Area of Triangle ABC = 25
</span><span>Area of Triangle DEF = 25
Line FB = 10
Line FD = </span><span>7.071067812
Area of Rectangle FBDA = </span><span>70.71067812
Total Area of Shaded Area = 25 + 25 + </span><span>70.71067812 =
120.</span><span>71067812
</span>
